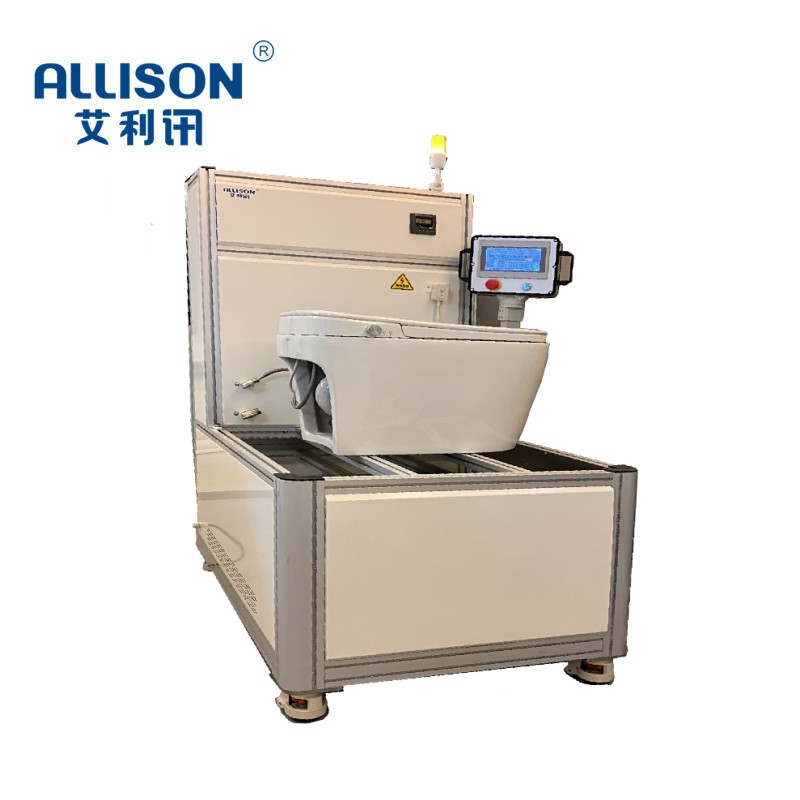

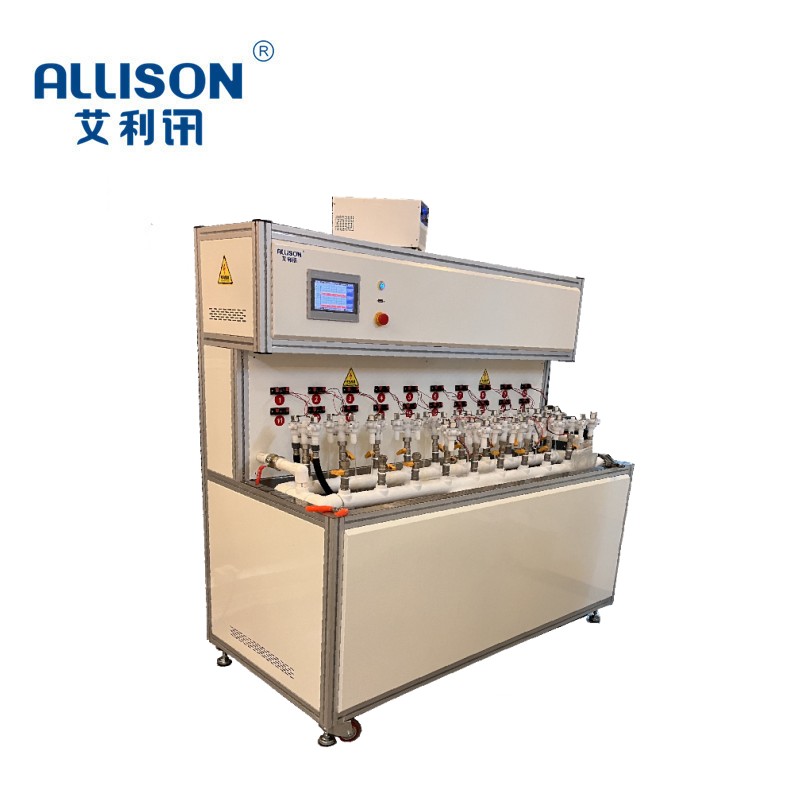

Flushing water tank aging test equipment testing machine is suitable for flushing water tank on-off type durability life test. PLC and 7-inch touch screen control system, stable operation, simple and convenient maintenance. The constant pressure water supply to the flushing water tank is carried out by the variable frequency constant pressure water supply pump

Time on-off and the number of on-off program cycle action. Real simulation of usage. As the power source of water pressure test, the multi-stage pump can keep the water supply pressure constant through the two-stage pressure storage system. Pipeline using 304 steel splicing, pipeline layout clear and beautiful. The working indicator lights of the system can automatically detect the running conditions of the major systems

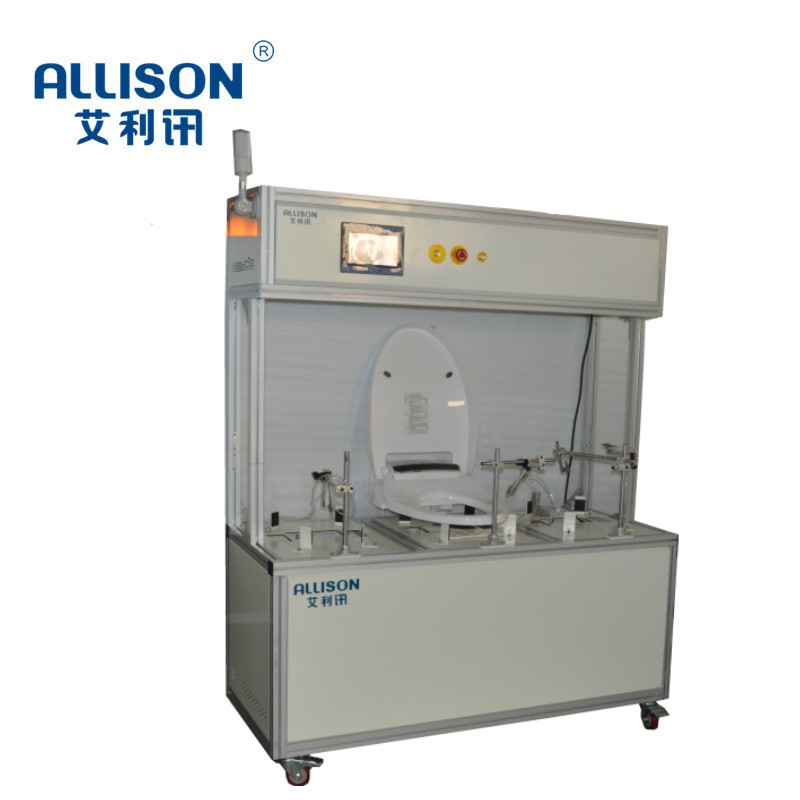

Applicable to intelligent toilet, a split toilet, split toilet, and other small household appliances for durability life testing.

Technical parameters：

1.Test station: 10 station independent test

2.Independent Control/Independent on/off valve for each station, programmed in a circular motion

3.Program Control: time on/off/number of times on/off

4.Control Interface: 7-inch touch display

5.Water supply: constant pressure water supply/circulating water use

6.Test Speed: 10-40 BPM adjustable

7.Test times: 1-999999 arbitrary settings

8.Power supply: DC 0-36V adjustable

9.Pressure Range: 0-1.0 mpa

10.Related Records: USB export

11.Power: 220VAC, 1.5 kw

12.Equipment Size: 1600X1150X1650MM
