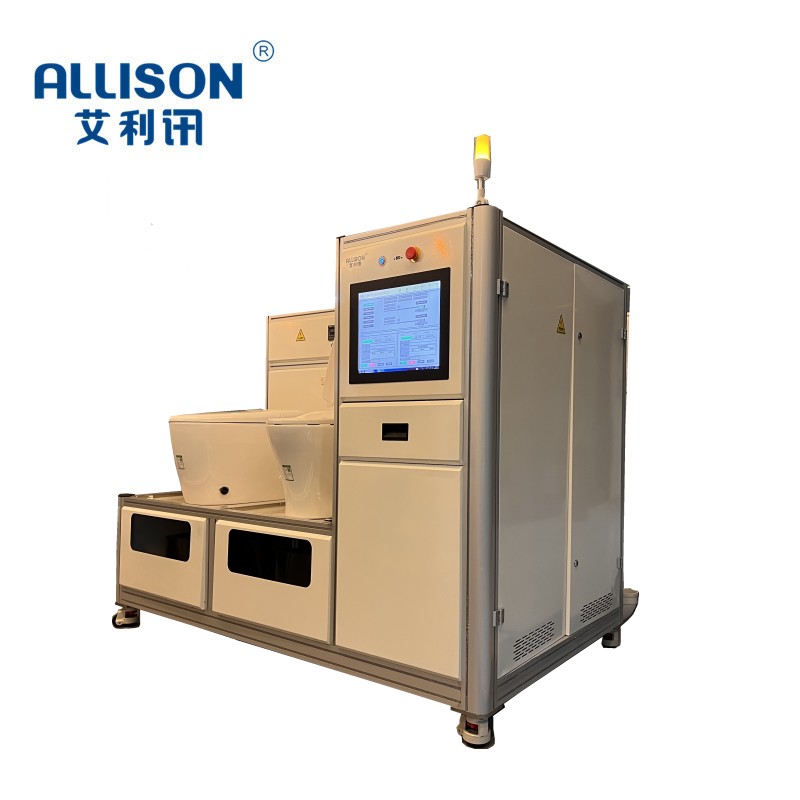

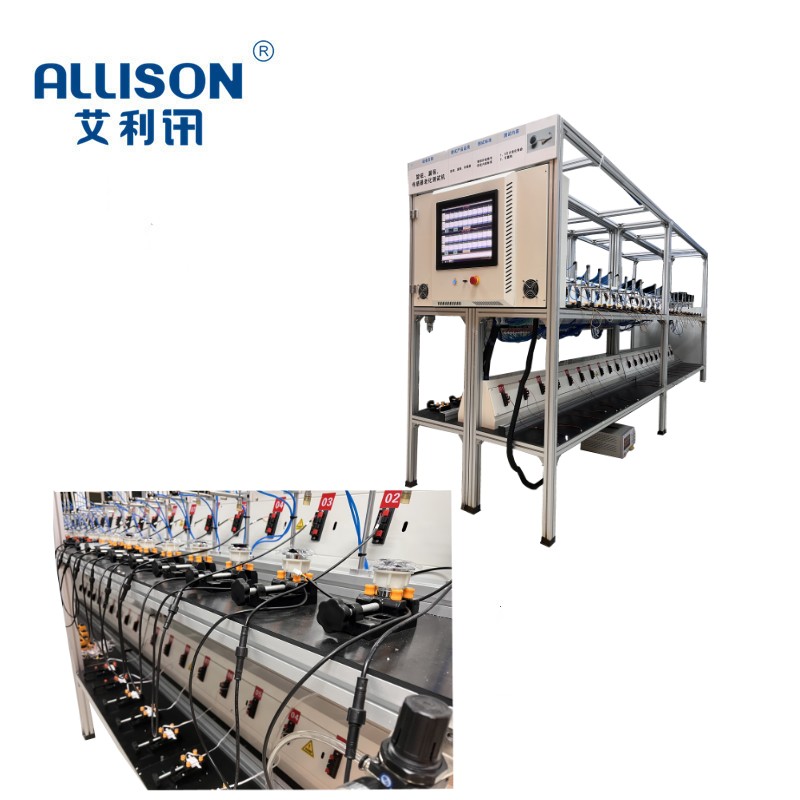

The intelligent toilet radar/foot sense/fan/night light/Air Pump/fan aging life testing equipment is mainly suitable for the intelligent toilet radar/foot sense/fan/night light/air pump/fan components such as continuous and periodic life testing. In the normal temperature environment, through the system setting and control, to test the components for a long time on/off life test. The whole equipment system is controlled by PLC program

Adopt PLC and 17-inch touch screen control system, the equipment running control through. Control system and with abnormal, fault alarm, and other functions.

Technical parameters：

1. Test Station: 10-40 station

2. Output voltage: 0-250V (adjustable) DC 0-36V

3. Test times/time setting: 0 ~ 99999 hours/min/sec (adjustable)

4. Time mode selection: long run/periodic run

5. Control mode, 17 Touch Display PLC

6. Power supply: 220V 4.5 kw

7. Equipment Size: 2500X 650x 1650 UNU: MM

8. Starting mode: pneumatic starting

9. Wiring: Socket/terminal

10. Data Export Method: USB
