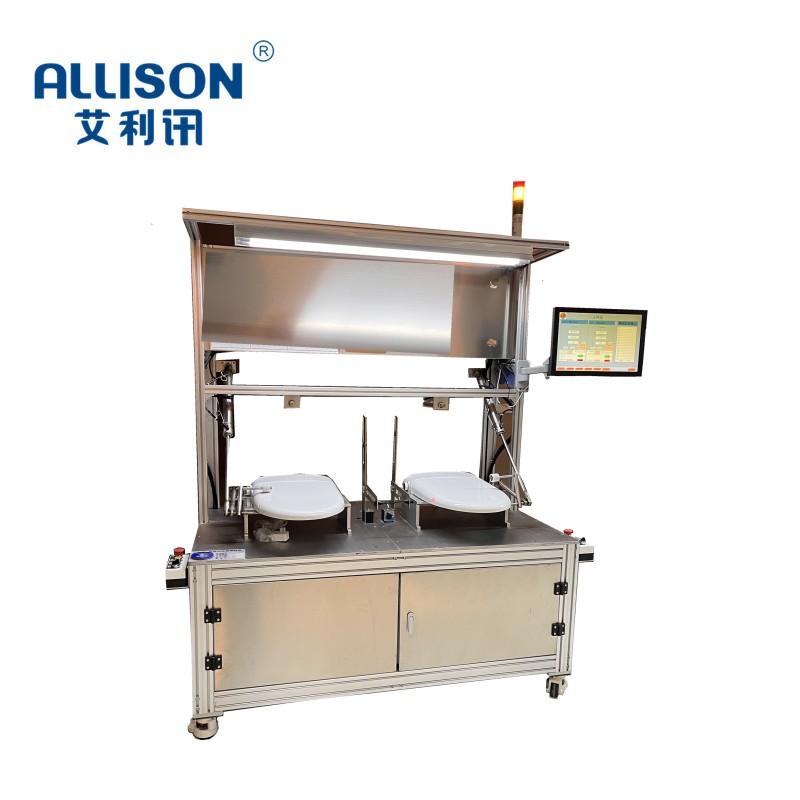

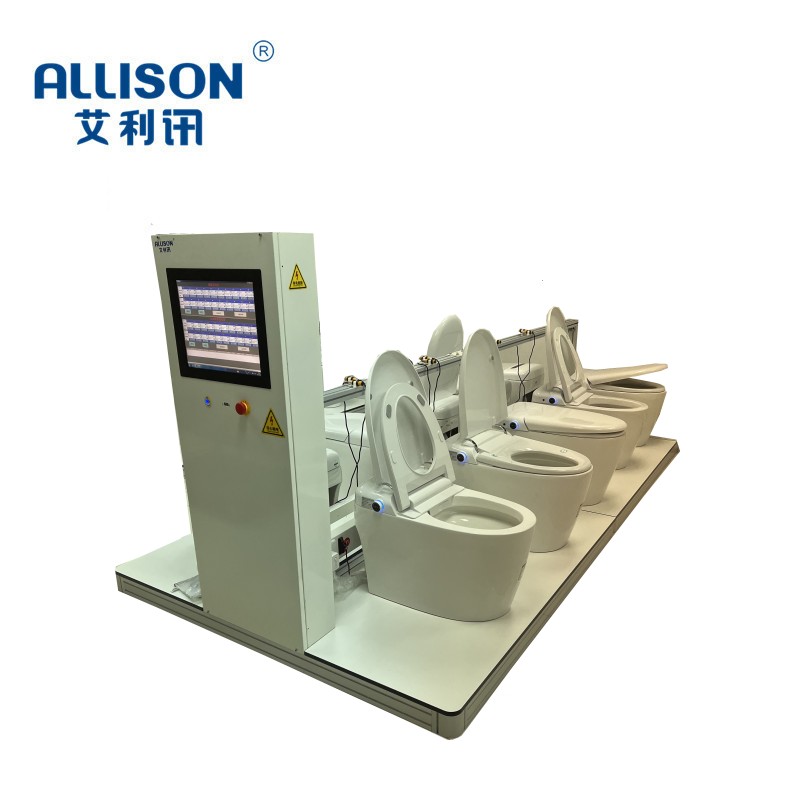

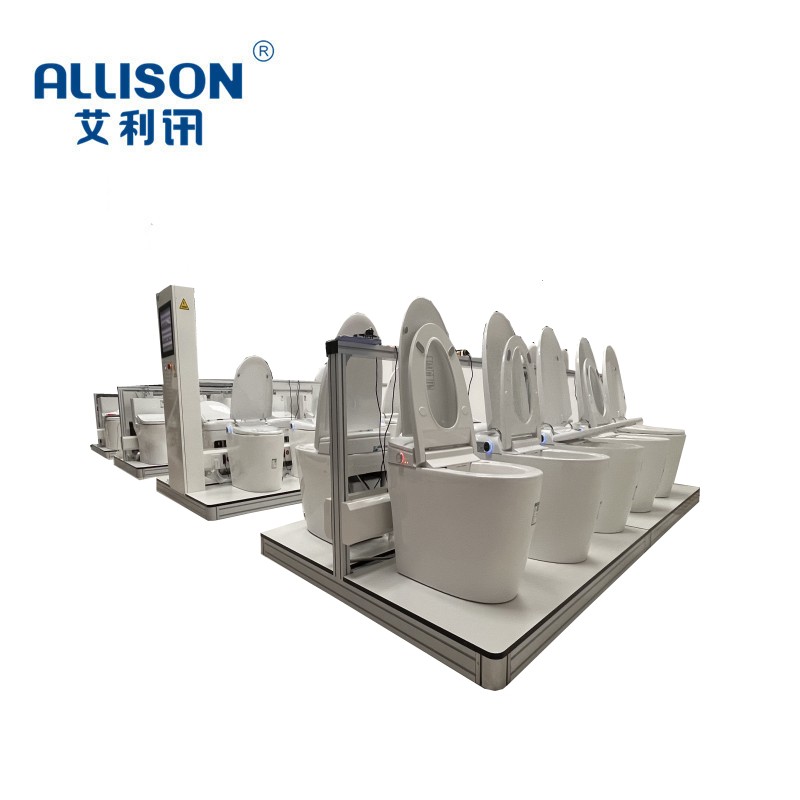

Intelligent toilet/toilet roll-over aging test equipment is mainly suitable for intelligent toilet roll-over into the continuity and periodicity of life testing. Through the infrared detection device to detect the switch box action, and record the number of tests. Through the system setting and control, carry on the long-term on/off life test to the toilet seat overturn action. The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode

The working indicator lights of the system can automatically detect the running conditions of the major systems. Control system for the independent development of PLC control. Adopt PLC and 17-inch touch screen control system, the equipment running control through. Control system and with abnormal, fault alarm, and other functions

Technical parameters：

1.Test Station: 10-40 station

2.Output voltage: 0-250V (adjustable) DC 0-36V

3.Test times/time setting: 0 ~ 99999 hours/min/sec (adjustable)

4.Time mode selection: long run/periodic run

5.Control mode, 17 Touch Display PLC

6.Power supply: 220V 4.5 kw

7.Equipment Size: 2500X 1250x 1650 UNU: MM

8.Detection: infrared sensing

9.Wiring: Socket/terminal

10.Data Export Method: USB
