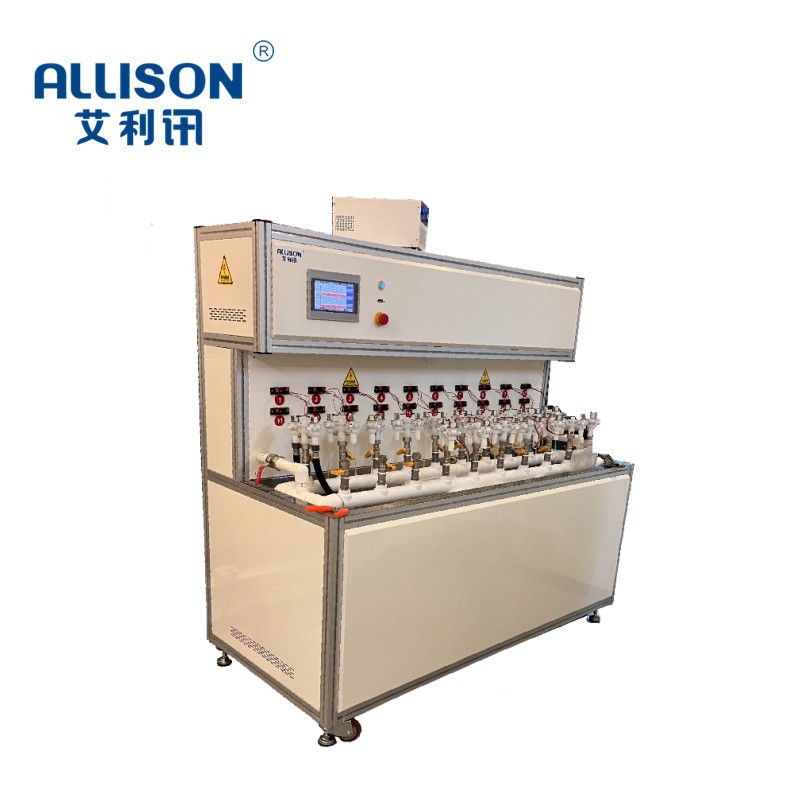

Solenoid valve assembly life test bed is mainly suitable for valve body in the constant water temperature and water pressure on the intake

valve parts for continuous and periodic life detection. In the normal temperature environment, through the system setting and control,

a long-time on/off life testing of the tested inlet valve. The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode.

Constant pressure water supply system: adopt water circulation mode, test water will flow back to 304 steel water storage tank after

passing through filter screen. The multi-stage pump is used as the power source of the water pressure test, and the water supply pressure

 is constant through the two-stage pressure storage system. Pipeline using 304 steel splicing, pipeline layout clear and beautiful.

Main technical parameters:

1.Test station: 4 stations

2.Output Voltage: DC 0-36V

3.Time setting: 0 ~ 99999 hours/min/sec (adjustable)

4.Time mode selection: long run/periodic run

5.Control mode, 7 Touch Display PLC

6.Power supply: 220V 4.5 kw

7.Equipment Size: 2500X 650x 1650 UNU: MM

8.Pressure Range: 0-1.2 mpa

9.Water temperature range: RT is 10 to 80 degrees adjustable

10.Number of tests: 0-99,999

11.Equipment size: 1250X650X1680 units; MM
