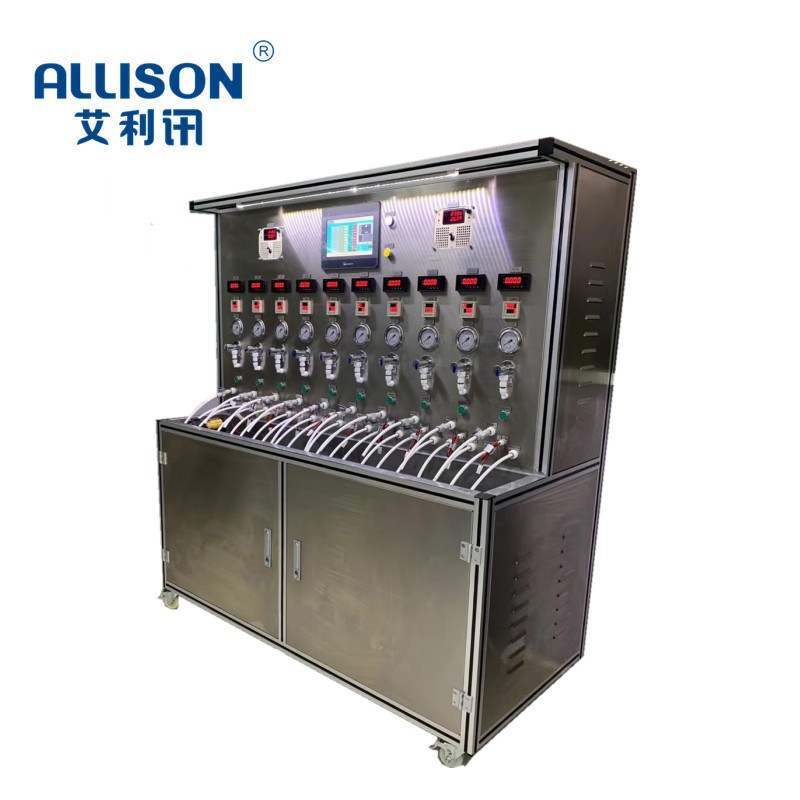

Intelligent toilet spray rod assembly aging test equipment test equipment is mainly suitable for intelligent toilet spray rod assembly for

continuous and periodic aging life test. Through the test platform, the valve components, through, break, flow, spray rod action, sealing

 and other functions of aging tests. PLC program control, program cycle control of the expansion and contraction of the spray rod,

functional detection, the use of frequency pump constant pressure technology, respectively, 20-station constant pressure water supply,

 electronic flow data collection of water flow data collection station, proximity switch on the expansion function to detect and judge.

The program control, carries on the correlation test data collection to each function test data and records the correlation test frequency.

Main technical parameters:：

1.Detection Station: 20, independent control

2, output voltage: DC 0-36V Power Supply

3, test times/time settings: 0 ~ 99999 hours/minute/second (adjustable) .

4.Time mode selection: long run/periodic run

5. Control mode, 7 touch display + PLC

6, flow collection mode: 0-20L/min

7, sealing detection range: 0-100Kpa settable

8, sealing detection accuracy: 0.5 level

9, detection/judgment mode: current detection, pressure drop detection, flow detection, action detection

10, water supply pressure: 0-0.5 mpa settable

 11, equipment size: 2500X 1250x 1650 units: MM

12 power supply: 220V 2.5 kw
