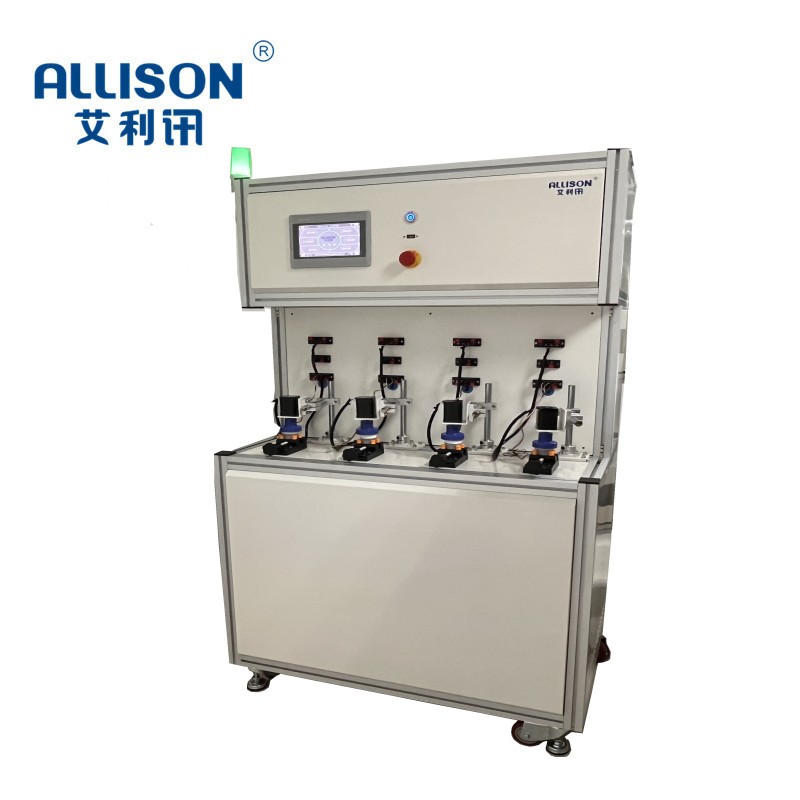

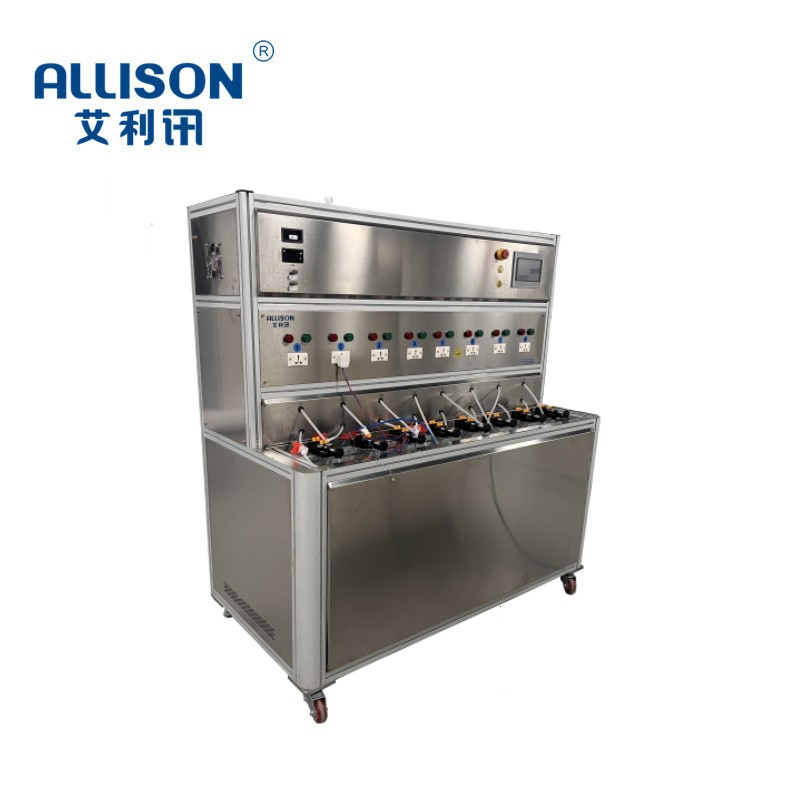

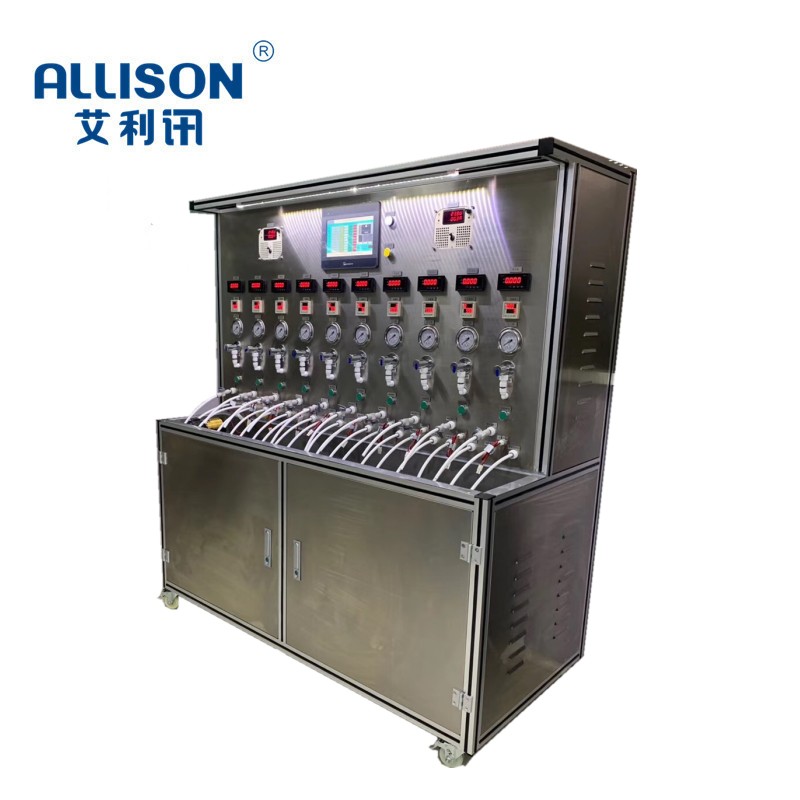

Intelligent toilet pressure-reducing valve assembly aging test equipment test equipment is mainly suitable for the intelligent toilet

 pressure-reducing valve assembly for continuous and periodic aging life test. Through the test platform, the pressure reducing valve

 components, through, break, flow, pressure, sealing test. Adopting PLC program control and constant pressure technology of variable

frequency pump, the relevant measure data of 20 working stations are controlled and collected and the related test times are recorded.

Through the PCL system settings and control, 10-inch touch screen display, using program control aging test action, to pass time, time,

test times, cycle times and other program test flow

Main technical parameters:

 1, Test Station: 20, independent control

2, output voltage: DC 0-36V Power Supply

3, test times/time set: 0 ~ 99999 hours/minute/second (adjustable) .

4.Time mode selection: long run/periodic run

5.Control mode, 10 touch display + PLC

6, flow collection mode: 0-20L/min

7, sealing detection range: 0-100Kpa settable

8, sealing detection accuracy: 0.5 level

9, detection/judgment mode: current detection, pressure drop detection, Flow

10, wiring mode: socket/Terminal

11, water supply pressure: 0-0.5 mpa settable

12, equipment size: 2500X 1250x 1650 units: MM

13, power supply: 220V 2.5 kw
