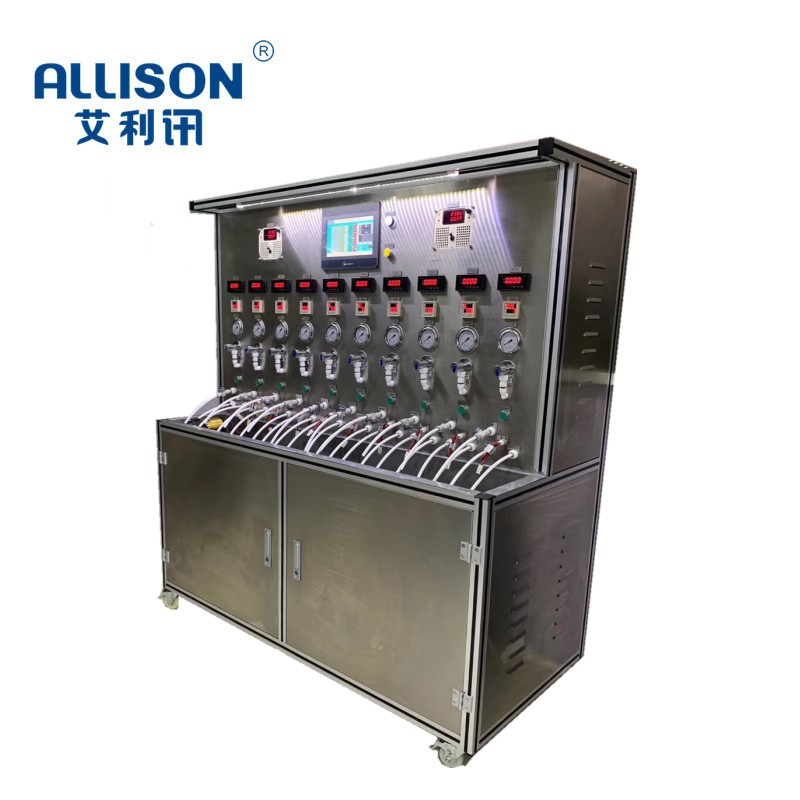

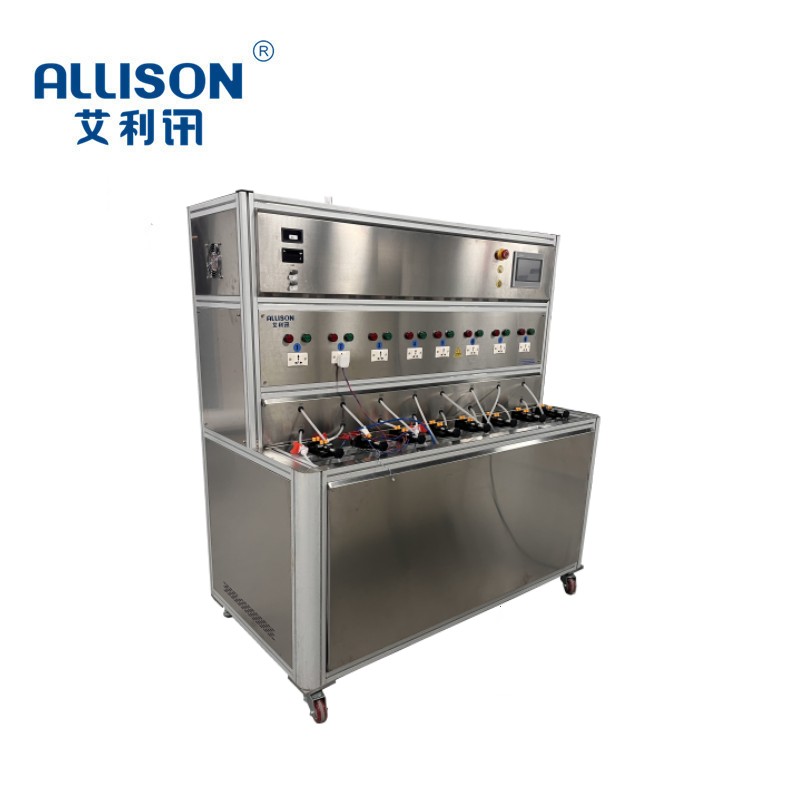

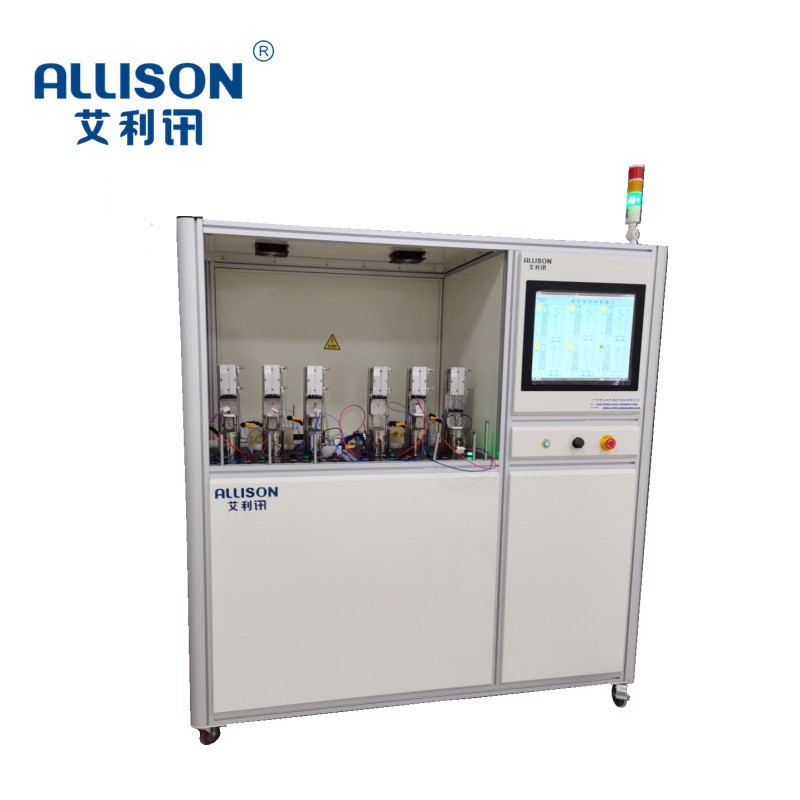

Intelligent toilet air temperature module aging test equipment test equipment is mainly suitable for intelligent toilet air temperature module for continuous and periodic aging life test. Through the test platform, the air temperature components, on, off, air temperature control and data acquisition and record the relevant test times. Through PCL system settings and control, 10-inch touch screen display, using program control aging test action, to pass time, time, test times, cycle times, temperature monitoring, etc. , conduct long-term on/off life tests on the tested air temperature components.

The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode. The working indicator lights of the system can automatically detect the running conditions of the major systems. Control system for the independent development of PLC control. Adopt PLC and 10-inch touch screen control system, the equipment running control through. Control system and with abnormal, fault alarm, and other functions.

Main technical parameters：

1.Detection Station: 20 stations, independent control

2.Output Voltage: DC 0-36V power supply

3.Test times/time setting: 0 ~ 99999 hours/min/sec (adjustable)

4.Time mode selection: long run/periodic run

5.Control mode, 10 Touch Display PLC

6.Temperature Collection: K-type thermocouple

7.Temperature acquisition detection range: 0-100 degree accuracy: 0.5 level

8.Detection/judgment: current detection, temperature detection

9.Wiring: Socket/terminal

10.Equipment Size: 2500X 1250x 1650 UNU: MM

11.Power supply: 220V 2.5 kw
