Reference Standard:

GB/T34549-2017 sanitary ware, intelligent toilet

GB/T23131-2019 household and similar use electric toilet seat

  GB 38448-2019 intelligent toilet energy efficiency limited value

 CBMF15-2016 intelligent toilet

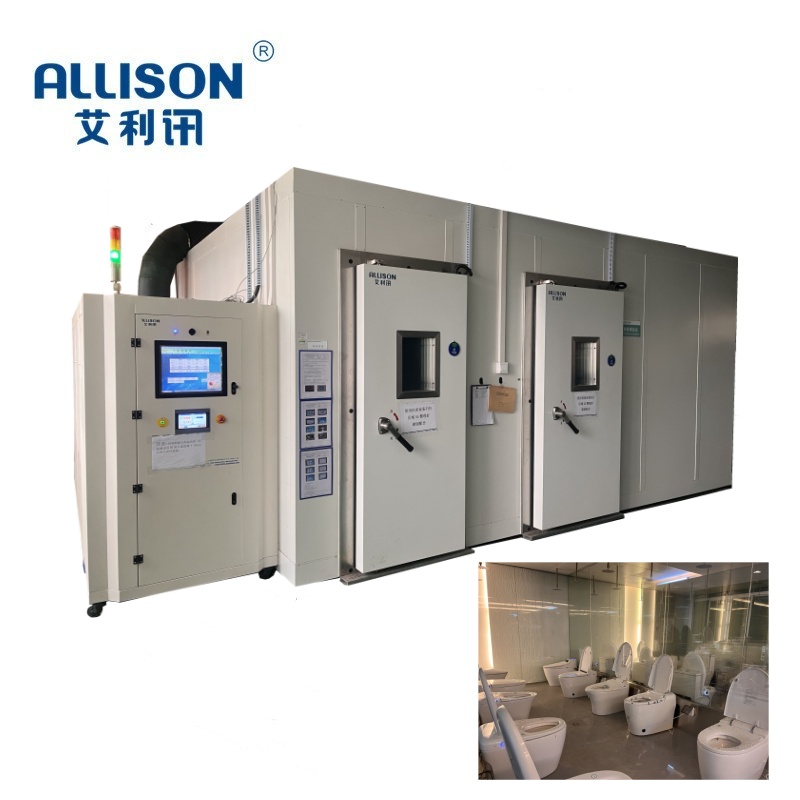

It is mainly used for the high temperature and high humidity aging test of the whole intelligent toilet, in order to test the t

oilet/toilet in the high temperature and high humidity environment for a long time, so as to judge and test the quality

reliability, the lab controls the temperature and humidity of the environment by PLC control and monitors the electrical

parameters of the products and records the test data

Related parameters：

1.Room size: according to the user to provide space

2.Humidity range: 90% -98% RH Temperature: RT + 10-85 °C

3.Humidity control accuracy:

4.Humidity uniformity: plus or minus 2%

5.Control mode: PLC Pid

6.Ventilation: automatic ventilation

7.Humidification: ultrasonic high-temperature humidification

8.Voltage: 0-300V adjustable

9.Test station: 0-20

10.Temperature Detection: Type K

11.Power supply: 380V 20KW
