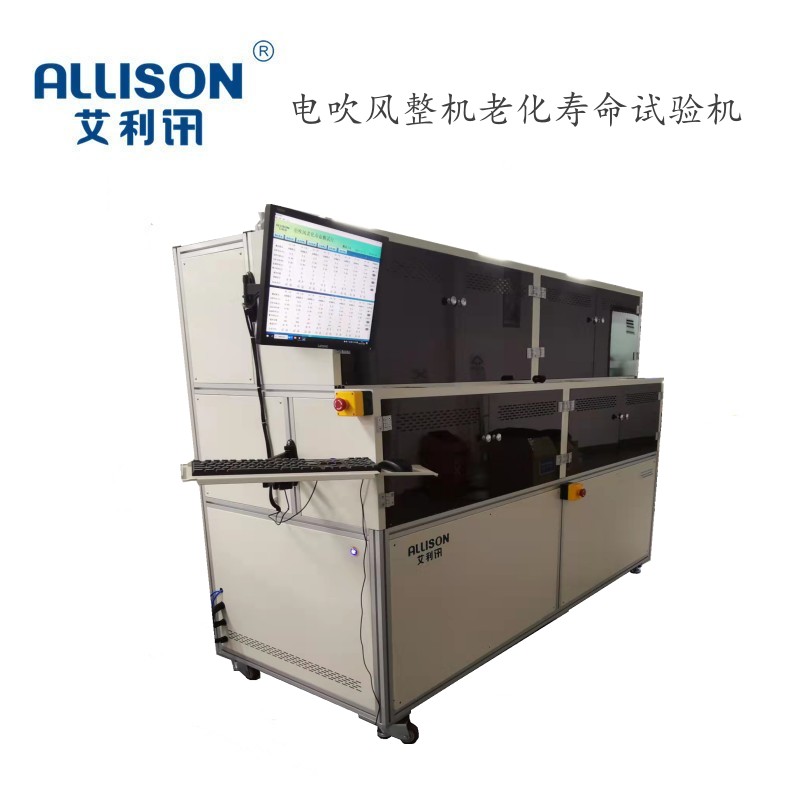

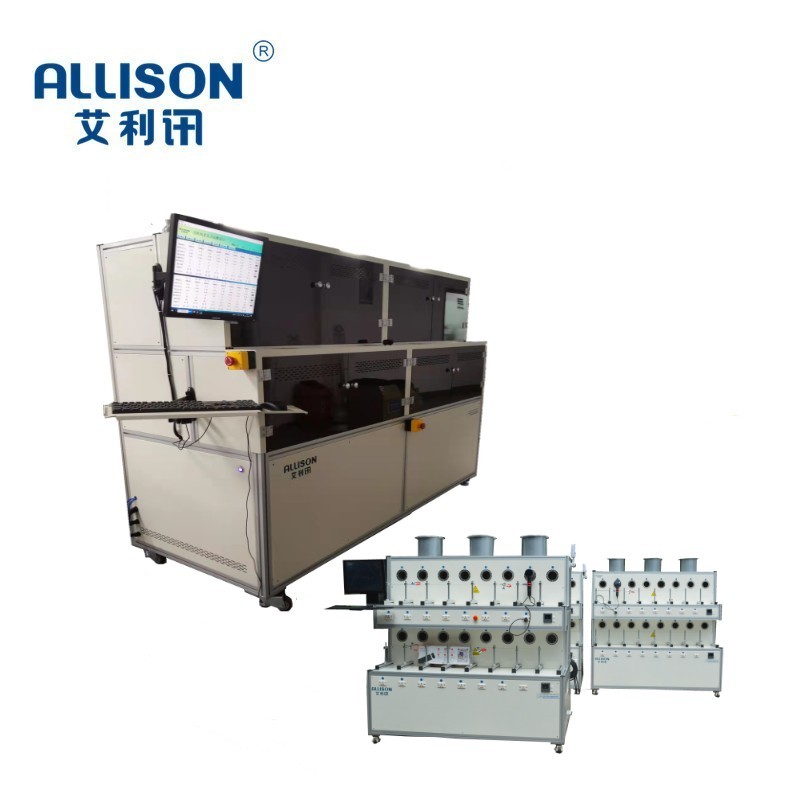

It is mainly used for continuous and periodic aging test of hair dryer. Through the setting of control system, monitor

 the testing process of current, voltage, test times, time and test cycle and record the related test data.

Related technical parameters:

1, detection station: 18 stations.

2, according to their own needs to set the test time and adjust the voltage, current size

3, set the number of tests, time, current alarm upper and lower limits, each station independent display;

6, equipped with smoke alarm, sound and light alarm and automatic power-off function

7, upper, middle and lower three-layer structure, each layer clamp 6 products,

8, each station in front of a load output socket.

9, the total power input through the air switch, ≥80A;

10, equipped with leakage protection switch, overcurrent, overvoltage protection device.

13, voltage: 0-250 V,

14, external dimensions about: length 1800 x width 650 x height 1700 MM,

15, weight about: 230 kg, power supply: 220 v 3.5 kw

16, equipment size: 1800 X750 X1750 unit: MM
