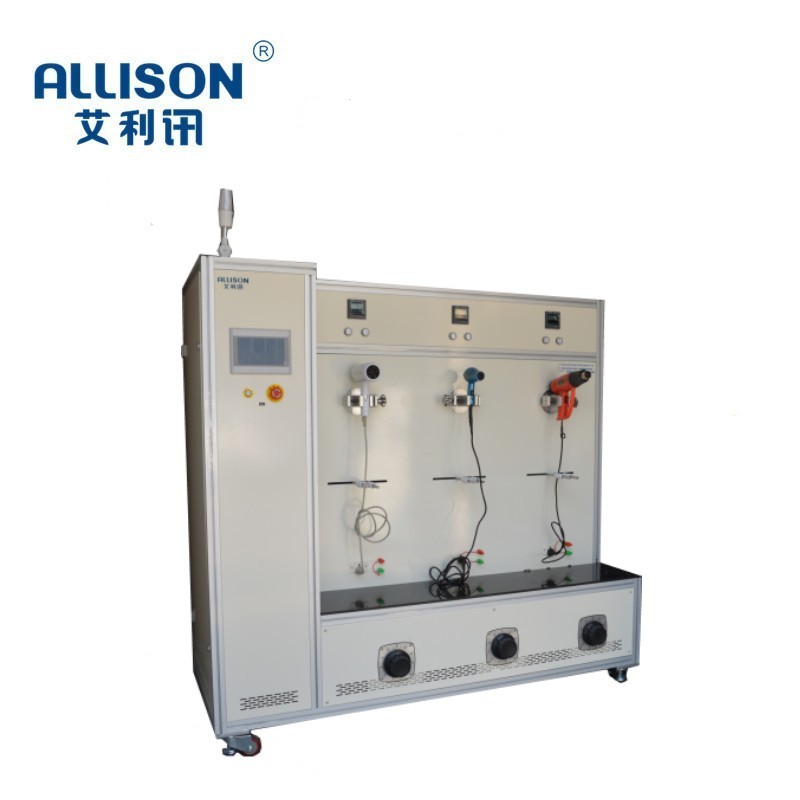

According to the test standard: UL, IEC, VDE standards, specially test the power plug lead wire and wire bending strength. The test

method is to fix the product on the jig, and load a certain load weight, the jig swings left and right during the test, after a certain

number of times, check its broken wire rate; or until it can not power, can not bear the test load, view its total number of swings.

This machine can count automatically, when the sample bends to the point that the power can not be applied, the machine will stop

automatically

Main parameters:

1.Fixture: 5 Station

2.2. Swing angle: 270 ° -0 ° -270 ° positive and negative continuous adjustable

3.Swing Speed: 0-60 times adjustable 4.5% .

4. Automatic Counter: 6 separate counter

5.Weight: 50,100,200,300,500 g

6.With and without load test selection feature

7.Load Range: AC0--30 A or DC0--5 a (may be adjusted in five groups independently)

8.Size: 125x6x120cm

9.Weight: 100,120,150,200,300,500 g each.

10. Power: 220V 1.5 kw

11Optional functions: load voltage 0-300v adjustable, load current 0-30a

12. Size: 1400X550X1250MM
