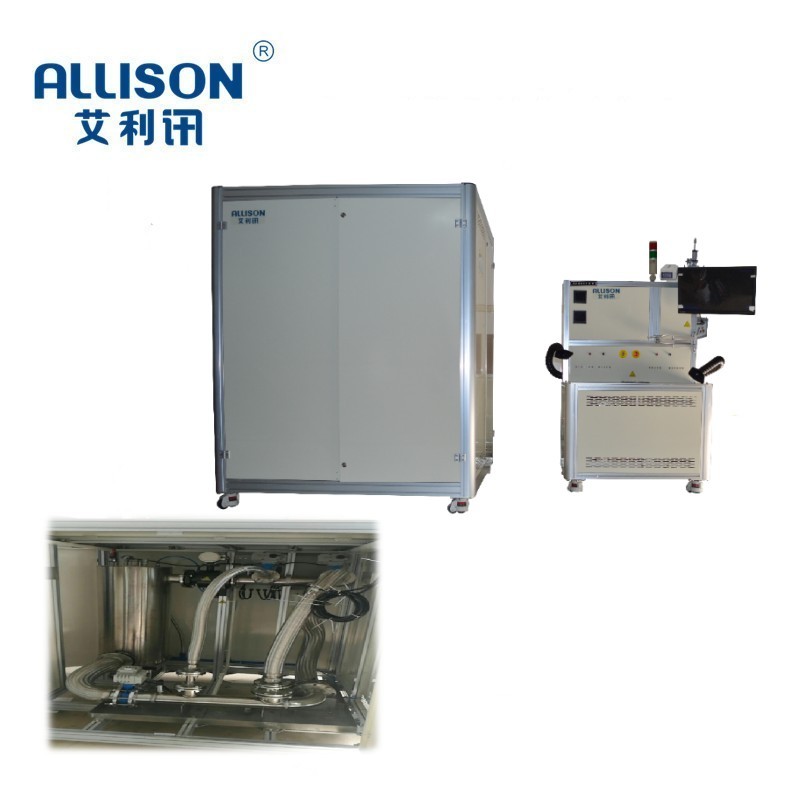

The pump on-line comprehensive performance testing platform is for the pump current, voltage, inlet and outlet pressure difference, flow, and other technical indicators on-line comprehensive testing; Industrial Control Computer real-time display and record related test parameters

Test items and related requirements：

Test items: flow, current, voltage, voltage difference value

The testing system is composed of high precision micro-flow tester, pressure gauge, ammeter, differential pressure sensor and pipeline

Accuracy: flow ± 0.5% , pressure ± 1% , current ± 0.5 grade

Test water system: three different pipe diameter pump switch

Test mode: closed loop detection

Main technical parameters：

Station: 2-5(optional)

Test voltage: AC0-250V DC0-30V, adjustable

Test current: 0-20A 0-5A

Test Power: 0 ~ 1500W

Flow rate: using electromagnetic flow meter 600 ~ 6000 ml/min (according to customer test products)

Water Pressure: 0 ~ 1.6 mpa, accuracy: ± 1% water pressure time: 0 ~ 999.99 m/s preset

Control mode: Industrial Computer PLC.

Power: 220V 50HZ 4.5 kw
