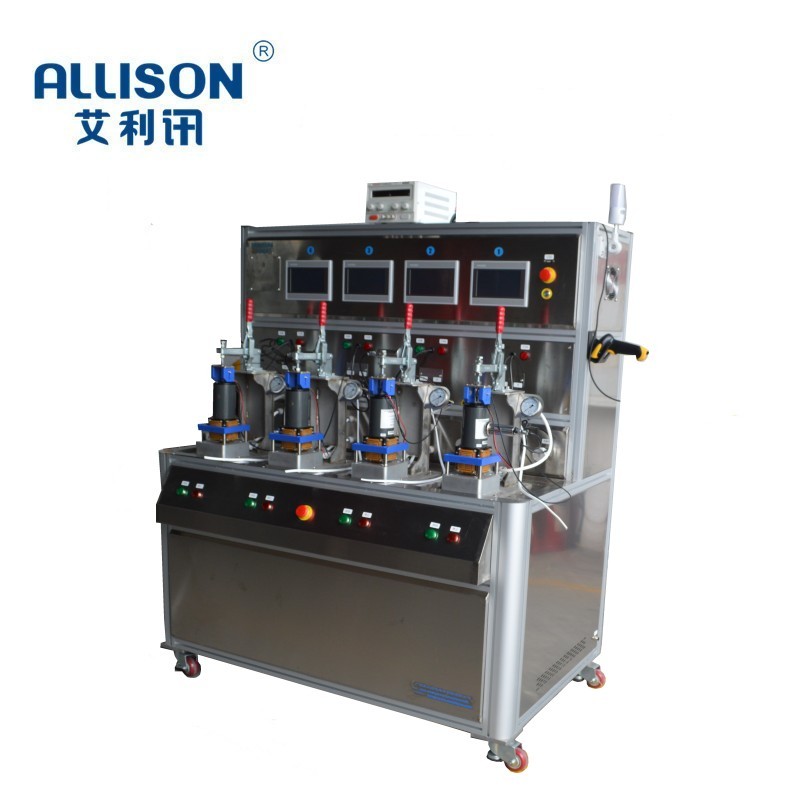

Pump comprehensive performance testing equipment according to the relevant industry test standards and customer

test requirements custom-made and design, equipment to meet the vertical pump, horizontal pump, centrifugal pump,

 liquid medicine filter and other pump products before the factory comprehensive performance testing

Pass the test and test to the pump before leaving the factory, voltage, current, power, cavitation allowance, water inlet

pressure, water inlet flow, water outlet pressure, water outlet flow, vibration, pump speed, etc. , and through the control

system to automatically Ng, OK Way to judge and related test reports and so on.

Main technical parameters：

1 detection tooling: 5 station independent detection

2 detection method: Product Upper and lower limits set judgment

3 flow detection range: 0-200 cubic meters/hour

4.Detection Time Setting: 1-9999999s.

5.Control mode: Mitsubishi PLC + 17-inch Touch Screen

6.Pressure Reading: 0-1.6 mpa

7.Power supply: AC 220V 380V

8.Detection function: voltage, current, power, flow, pressure, speed, vibration, cavitation allowance 9.5% . RPM range: 0-10000r/min (non-contact

9. Cavitation allowance: 3m-8m

10. Test Data: USB Data Export

11.5% . Test water temperature monitoring: 0-100 degrees can be set to

12.5 degrees. Valve opening: Time Control, digital display

13.Equipment Dimensions: about 9000 x 1850 x 3280 length x width x height

14.30. Equipment Power: 380V 50HZ 3.0 kw
