Implementation test standard: GB/T 17213.9-2005/IEC 60534-2-3:1997GB/T13927-1992/API 598ANSI, B16.34

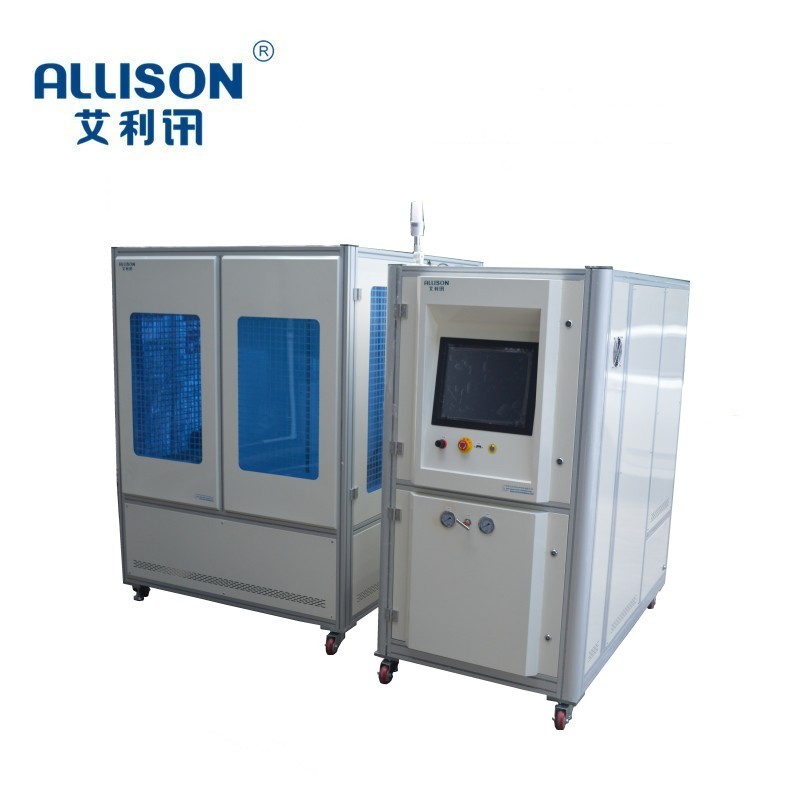

Flow capacity testing equipment according to customer requirements, equipment to meet the refrigeration valve, water pump, water one-way valve,

manual valves and other zero, accessories for comprehensive performance testing, testing equipment through PLC control, the 17-inch touch screen

display enters, carries on the water pressure test, the on-off valve pressure difference, the internal leakage quantity, the head and the flow rate characteristic,

the on-off valve durability and so on many tests to the tested sample, passes the related test condition, the durability of the tested samples was evaluated under

comprehensive service conditions. The equipment is mainly used to test whether the products meet the relevant design requirements before leaving the factory.

Test flow:

1.Test sample liquidity,

2.Test pump performance (flow at voltage, power, current, lift)

3.Testing, product compressive strength

Main technical parameters:

1 Test Route: Single Channel

2 test samples: refrigeration one-way valve, water pump, water one-way valve, manual ball valve, etc.

3.Flow detection range: 0-20 cubic meters per hour (initially set, subject to customer samples)

4.Control mode: Mitsubishi PLC + 17-inch touch screen display

5.5% . Pressure control range: 0.25MPA max. 25MPA accuracy rating: 0.25

6.Pressure difference detection range: 0-0.6MPA 0.25 grade

7.25. Start-up voltage range: AC 0-400V adjustable (three-phase

9. Detection functions: pump testing: voltage, current, power, flow, water resistance, lift, copper or copper valve

testing: on-off valve pressure difference, pressure

strength, pipeline liquidity, on-off valve durability

10. Test medium: tap water test

11. Equipment size: 1650X1000X1650 unit: MM
