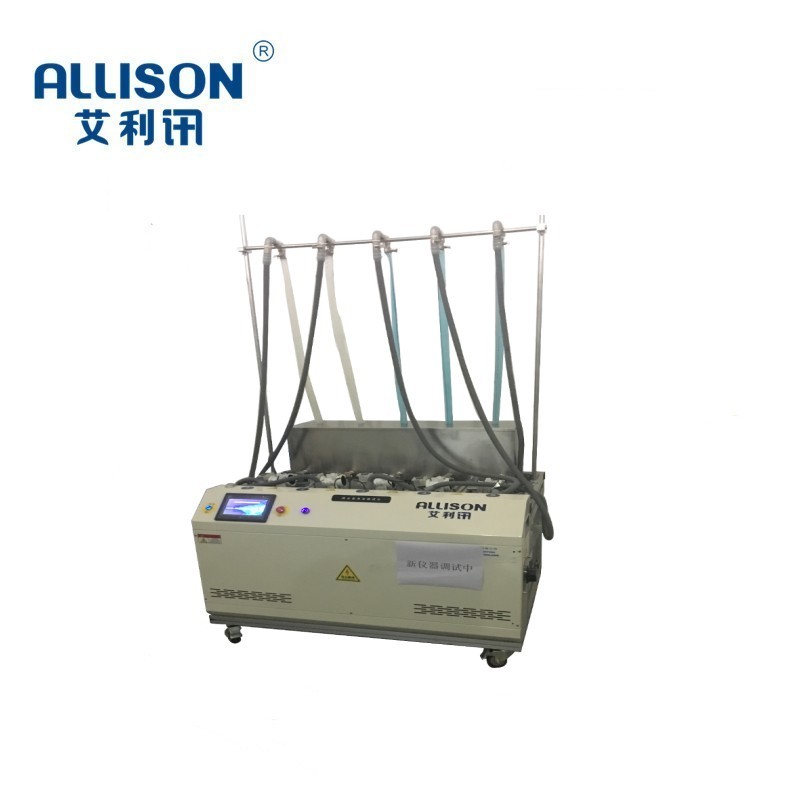

The test-bed is mainly used for long-term and periodic on-off life test and basic performance monitoring of pumps. The equipment is 5 stations. Through the touch screen control, the long-term and periodic on-off life test of the pump is carried out for the related test parameter equipment. The test mode is the water circulating in the water tank, and the use is simulated by adjusting the height of the outlet. Each work station has the independent wiring port, convenient docking external voltage. 0-250V supply voltage output

Main technical parameters:

1. Output voltage: 0-250V (adjustable) DC0-48V (adjustable)

2. Time setting: 0 ~ 99999 hours/min/sec (adjustable) .

3. Time Mode: long run/periodic run

4. Stand-alone time/cycle setting

5. Features: time settings/periodicity settings

6. Pipeline: Steel Pipeline + Hose Connection

7. Control mode: PLC Control

8. Pump Jigs: Quick Clamping

9. Control interface, Touch

10. Outlet Height Adjustable: 0-1500MM (manual adjustment)

11. Equipment Power: 220V 50HZ 2.5 kw (excluding equipment power)

12, equipment size: 1200X650X1750 unit MM
