1.The cold-hot alternate constant pressure water supply system is designed according to

the requirements of customers, and is mainly suitable for the use of cold and hot water i

ntegrated capacity test for valve types. With PID frequency conversion and constant pressure

 water supply, under the pressure range of 0-2.0 mpa, the life test of the tested valve body is

carried out under the condition of specified cold and hot water use with 5s on, 5s off and one

 on-off. The main components of the test equipment are: central control system, test frame,

 constant pressure water supply device, heat and cold constant temperature control system

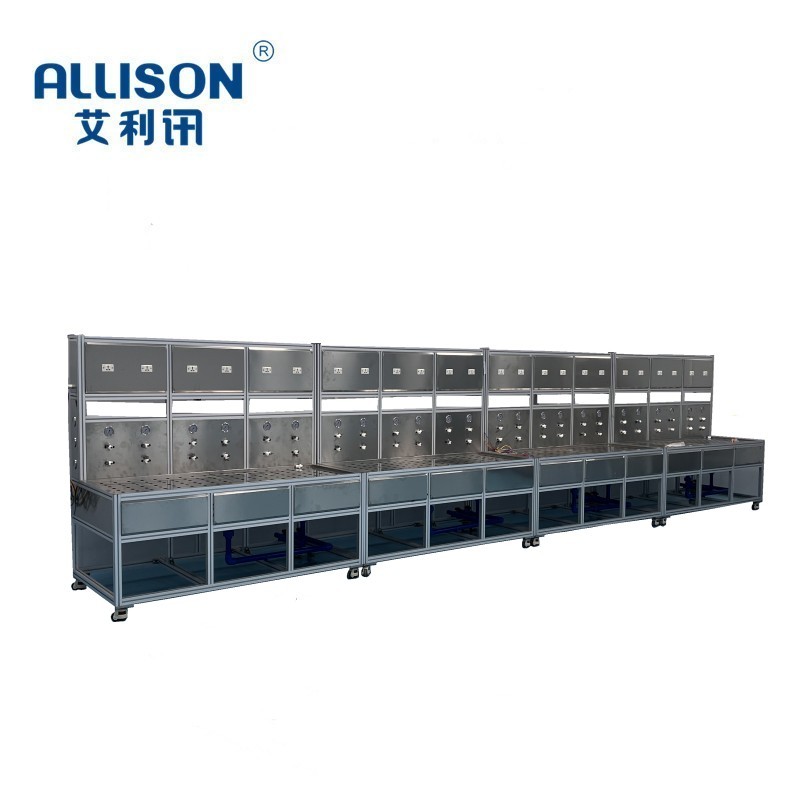

2.The testing machine is assembled with 40 aluminum frame, the sheet metal is assembled

with 304 # , and the inner water tank and pipeline are welded with 304 # steel. Built-in hot and

 cold water tank respectively supply water, the use of circulating water on the test water respectively back to the hot and cold water tank

Main technical parameters:

(1)test pressure range: 0.2-2.0 mpa (adjustable)

(2)test station: Unit Station 6 output

(3)product power supply: 0-36V 20A

(4)max flow: 45L/MIN

(5)test time: 0-9999s (adjustable)

(6)test water: normal temperature tap water

(7)cold water tank capacity in 250L

(8)hot water tank capacity in 250L

(9)temperature range: 3-55 ° C

(10)Test Mode: On-off mode, cold water mode, hot water mode,

(11)on-off mode: 0-99999S break 0-99999S can be set

(12)cooling mode: air-cooled mode

(13)test water: circulating water

(14)equipment size: about 1.6 m * 1.2 m * 1.8 M

(15)RRB- equipment power supp220V220v. 5.5 kw
