The equipment meets: IEC60227-2, IEC245-2, VDE0472, GB5023.2, IEC60245-2(ED2)1994 + a 1:1997, GB5023.6 and GB5013.2, UL1581

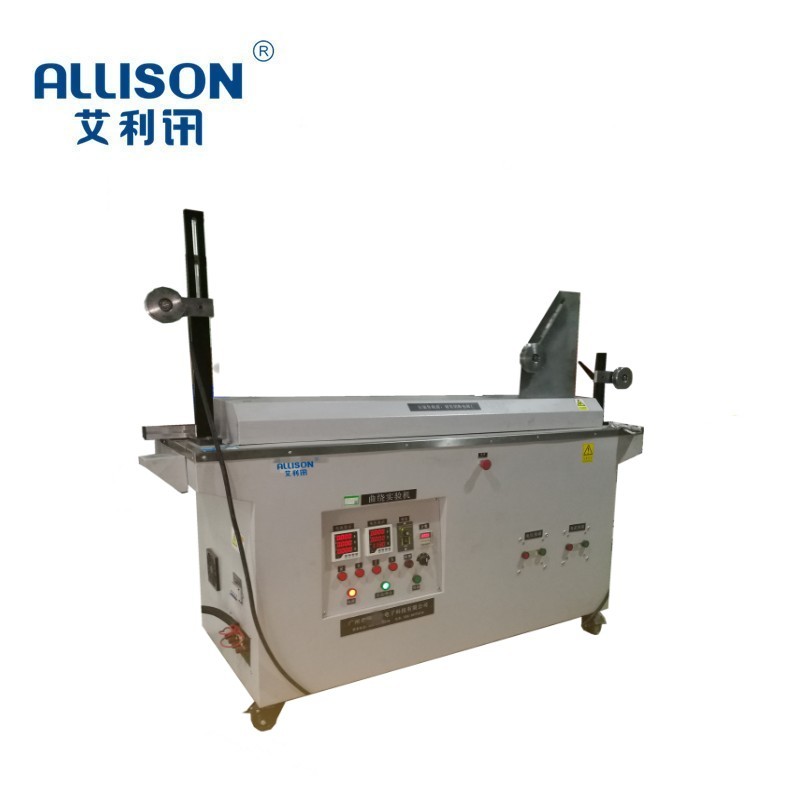

Scope of application: Used for testing the breakage of rubber insulated and sheathed flexible cables under dynamic load after a certain number of bending

AC380V 50HZ power supply, Mitsubishi PLC as the control core, LCD CNC panel, easy to operate

Technical parameters:

1.Load Current: 0.5-35a

2. The experimental speed was 330 ± 5 mm/s

3. Test run: 1000 mm ± 20 mm

4. Number of tests: 1-999999

5. Test voltage: two-core single-phase AC: 0 ~ 250V (adjustable)/three-core three-phase AC: 0 ~ 450V (adjustable)50HZ

6.Test type: two-phase single-phase, three-phase three-wire, three-phase four-wire 7.0% .

7. method: no-load, single-phase (two-core) , three-phase (three-phase three-wire/three-phase four-wire) optional test

result judgment method:

8. Indicator: O, R, S, T phase break and automatic shutdown;

9. The indicator light indicates: R/s, R/T, S/t, R/O, S/O, T/o short-circuit and stop automatically;

10. Indicator Light indication: O, R, S, T and pulley short circuit
