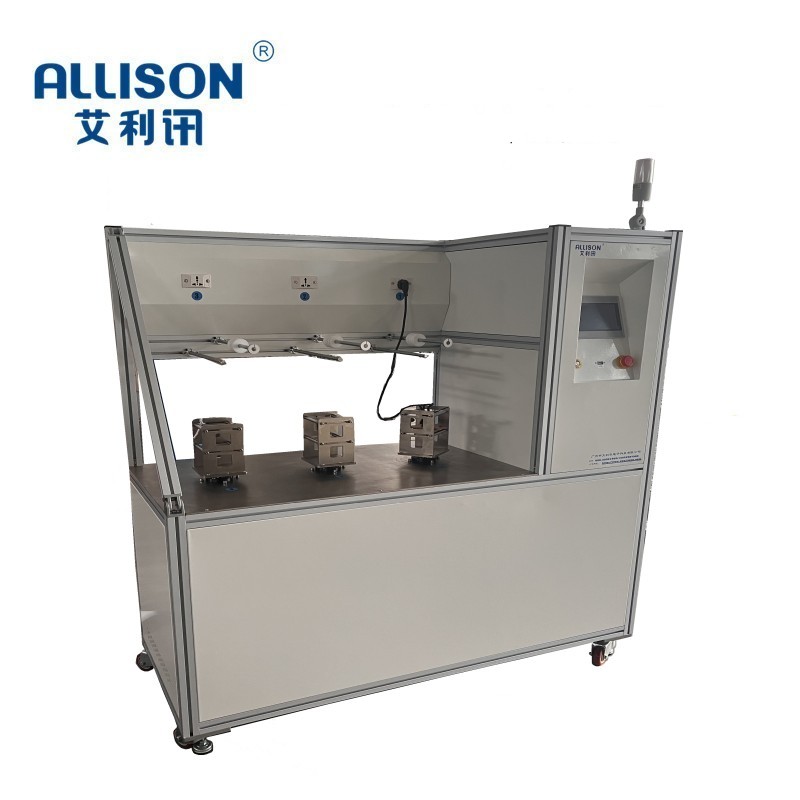

The wire torsion testing machine is designed to test the torsional strength of various wire and the torsional resistance

of enameled wire film. The test method is to clamp the two ends of the test material fixed at one end, the other end of

the continuous reciprocating torsion, until the test material twisted or enameled wire of the film off, exposed conductor,

 recorded its torsion resistance. The wire winding + torsion testing machine conforms to GB/T4909.4-2009 standard and

GB/T4909.7-2009 standard.

Main technical parameter

1.horsepower: DC 1HP

2, Jig Action: Chuck Type

3, Jig Spacing: 0 ~ 500m

4, Speed: 6 ~ 60rmin can be arbitrarily set

5, rotation: 0 ~ 999999 can be arbitrarily set

6, load: 5Kg, 10KG, 15KG

7, detection mode: current, voltage, on-off times

8, device size: 1300 × 550 × 1400 units: MM

9, load: 0-30A (optional)

10, power supply: 220V 1.5 kw
