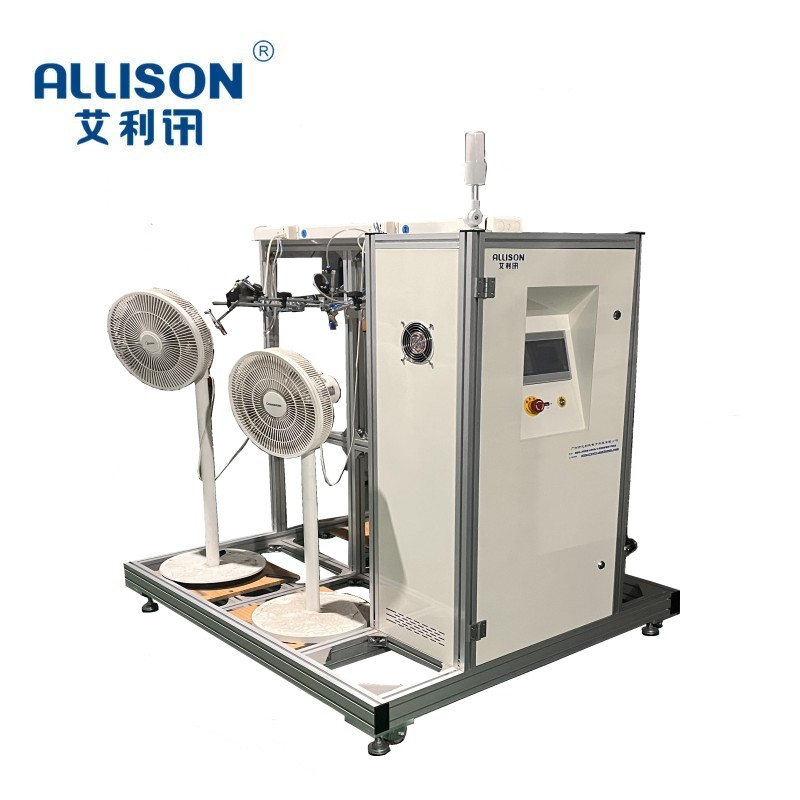

This equipment is mainly designed for the electric fan industry. The equipment adopts the

PLC Processor + touch screen control mode, and is suitable for the long-time on-off life aging test of electric

 fan household appliances, complete time, frequency, on-off interval time and other parameters set first, the tested

fan for aging testEach station can test each other simultaneously without interference, enter the Operation Interface,

test time, stay time, test cycle, rotation angle, test times and so on can be preset and real-time display, when the product is

damaged or the test is completed, machine automatic alarm prompt. The current test times can be saved even if the power

is suddenly cut off, and the remaining tests can be carried out after the power continues.

Main technical parameters:

1, test station: 4-12 station (optional)

2, control mode: PLC Processor + Touch Panel

3, driving mode: pneumatic

4, on-off mode: time on-off, on-off number of times, on-off interval time,

5, power supply: external power supply, voltage: 0-250V adjustable 0-20A current detection

6, test time: 0-999999 seconds/Time

7, power supply: AC, DC

8, detection parameters: voltage, current, power, on-off times, Fan Shake Action Judgment

9, power supply: 220V 1.5 KW

10, device size: 2000X 650x 1650 units MM
