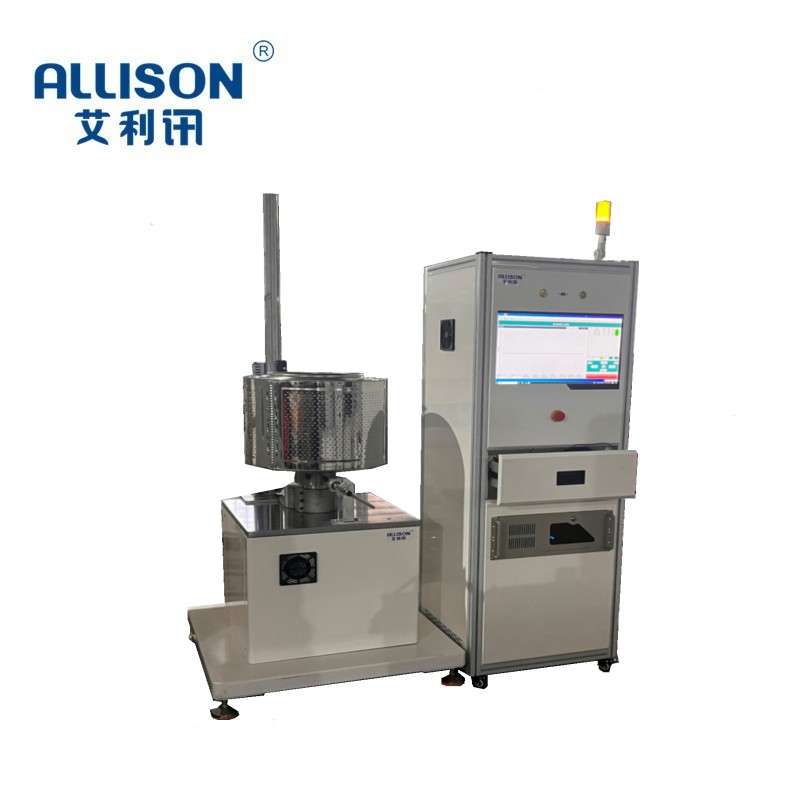

The machine is mainly used to test the rotating speed, shaft runout and relative dynamic balance of the fan blades,

 impellers, impellers and other products on the market. The testing machine is made by reference to relevant European

standard, National Standard and enterprise standard

Control system, PLC control, 17-inch display. Through the speed sensor and laser position sensor, the measured data of

the speed, value, shaft run-out, dynamic balance of the wheel, blade and shaft were collected and recorded. The data are

automatically numbered and Excel  , and the standard deviation and the comparison with the set accuracy standard are automatically

 calculated by software.

Technical parameters:

1, Test Station: Unit

2, test bed size: W800 × D800 unit: MM

3, control mode: PLC + 17-inch Touch Screen Display

4, Switch Mode: Dynamic Balance Mode, speed mode, shaft jumping mode

 5, probe acquisition: Laser/infrared, accuracy: 0.01 MM

6, Spindle Speed: 0-2000 rpm

7, maximum workpiece test range: diameter 50-500 units: MM

8, Equipment Power: AC 220V 50Hz

9, Power: 220V Power: 1.50 kw
