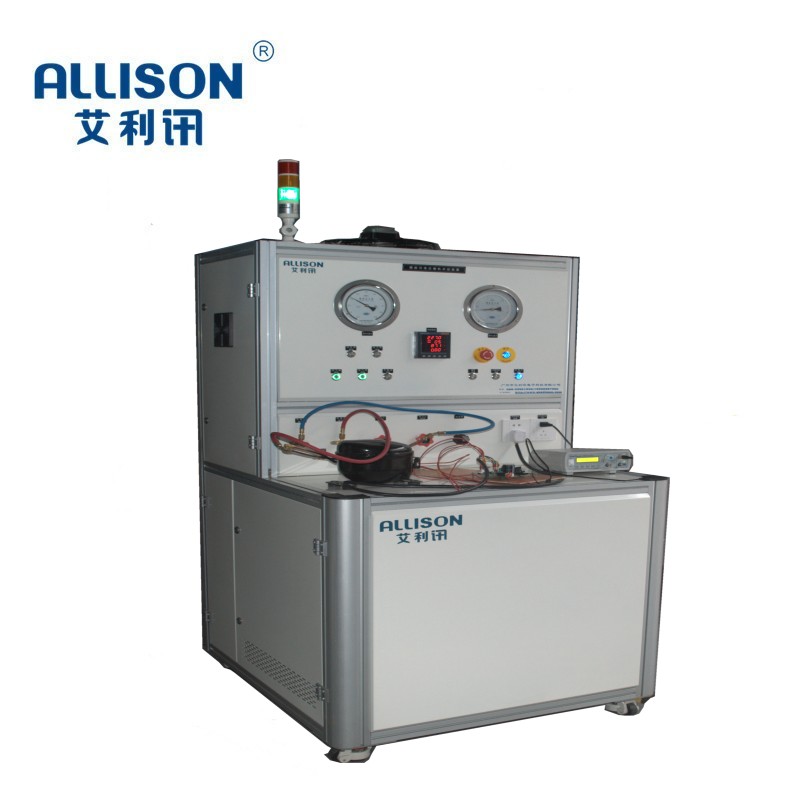

Compressor start-up test-bed is in accordance with GB/T9098 -2008 standard requirements, continuous voltage test compressor start-up. The test-bed is a unit.

Main technical parameters and basic structure of the equipment

1.Application: small full-enclosed constant frequency conversion refrigeration compressor;

2.Starter Type: Inverter Board starter;

3.Test items: pressure and frequency down start;

4.Instrument accuracy: voltage regulation accuracy is ± 1.0% ; pressure accuracy: ± 0.5% ; electrical parameter accuracy: ± 0.5% ;

equipped with communication port.

5.Test medium: R600A, dry nitrogen;

6.Control mode: with pressure-holding test function;

7.Test voltage: rated voltage: 40V-300V/50Hz/60Hz, standard 3KVA inverter power

8.Number of tests: 1 set, unit;

9.Device color: all-in-one color optional (no more than three color combinations to share) ;

10.Suction line pressure regulation range: -0.1 MPA--0 MPA (vacuum pressure)

11.25% . Suction line pressure regulation range: 0-0.9 mpa

11.Outlet pressure adjustment range: -0.1-0 mpa (vacuum pressure)

12.5% . The pressure adjustment range of exhaust pipe: 0-2.5 mpa
