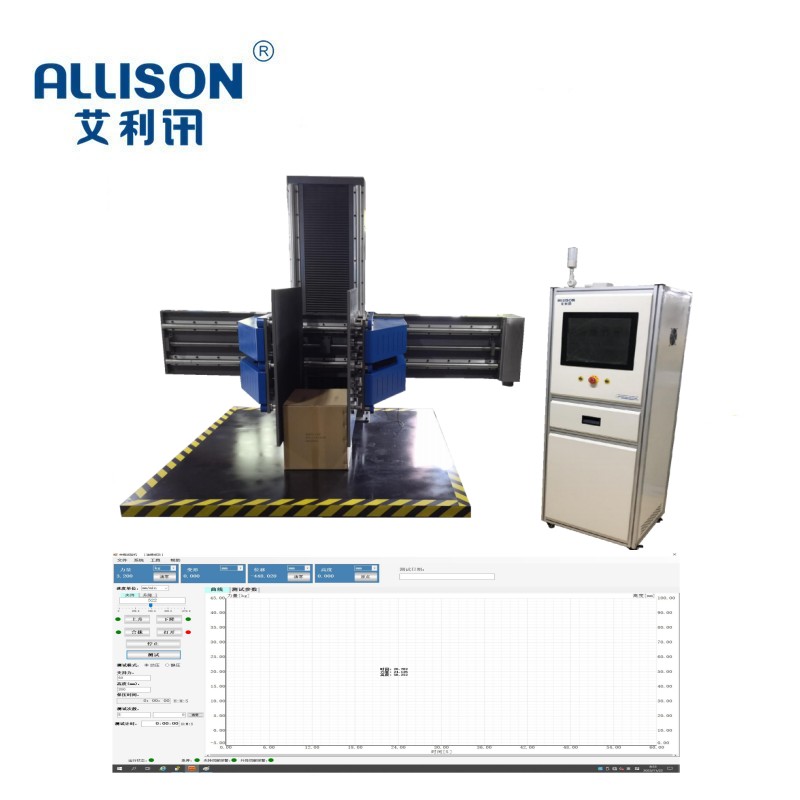

This machine is mainly for the product after packaging in the warehouse or trucks, trains, etc. loading and unloading can withstand

the lead pressure from the car, so as to assess the product damage. The machine adopts servo motor control, PLC programming

touch screen display

Test criteria: the test shall be in accordance with ASTM D6055, US, Sears, enterprise standards or customer non-standard requirements.

Applicable to all products packaging test verification. The main test in the process of transport and storage of product packaging under

horizontal pressure of deformation and packaging of the protection of the inner packaging, so as to improve packaging design

Technical parameters:

Sample shape: parallel hexahedron transport package

Test weight: 200-1000KG

Clamping pressure: 400-3000Lb (adjustable)

Test space size: 1200 × 1200 × 1000mm (length, width and height)

Clamp plate height adjustment: 0-1000mm can be set

Lifting Speed: 10 ~ 500mm/min adjustable

Clamping Speed: 10 ~ 50mm/min adjustable

Expansion width of splint: 200-2000mm

Force corrector: with force value display, used to correct the clamping pressure
