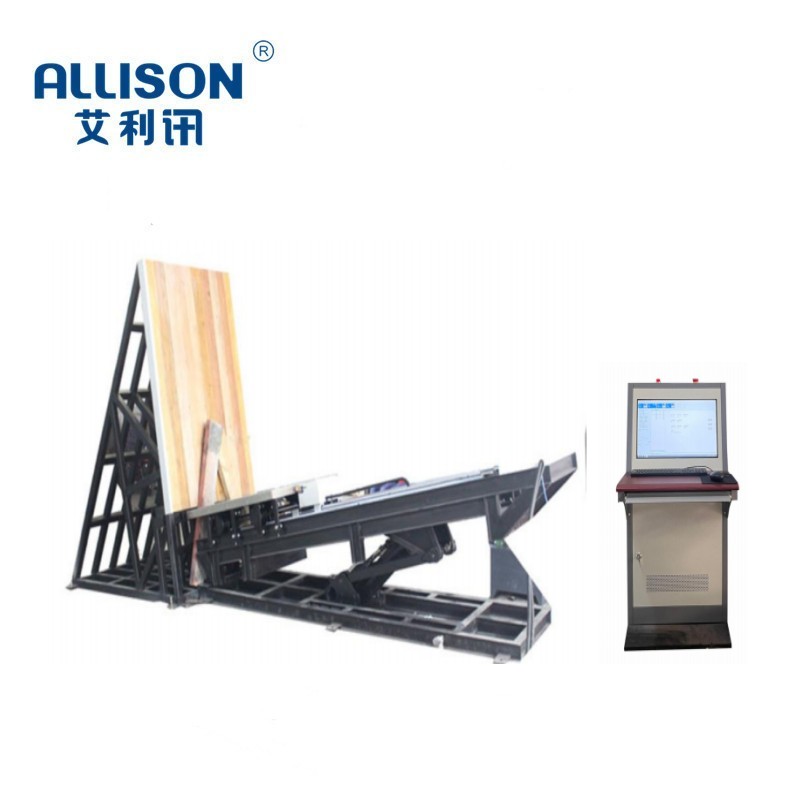

The beveled impact test bed simulates the ability of the product package to resist impact damage in the actual transportation environment, such as the transportation of the product,

the machine can also be used as scientific research institutions, colleges and universities, packaging technology testing center, packaging material manufacturers and transport departments

to carry out slope impact test equipment

The design meets the criteria: ISTA-3e. 3J & Amp

1, flexible positioning electric pulley, easy to fix position, to achieve the required speed change value

2, pulley height is relatively low, conducive to the installation of test samples; reinforced impact plate,

3, the pulley table can be adjusted to the level for the convenience of installing the test piece, the angle adjustment is driven by the cylinder, which is flexible and convenient,

4, it can be operated by the remote control mode to ensure the safety of the test personnel;

5, the installation of the customer only need to fix the machine on the ground, no other complex operation or installation, easy to test.

Technical parameters load: 0-1000KG impact panel size: 2000 * 2300mm

Max skid length: 2000mm (customizable) impact speed range: 1.3-2.3 m/s

appearance size: 7000 * 2000 * 2300mm pulley table size: 2000 * 2000mm

impact speed error: ≤ ± 5% supply voltage: 380V, 50/60 Hz

working environment: temperature 23 ~ 40 ° C,

 humidity ≤80% (no dew) control

system: PLC control, transmission mode: pneumatic device + Reducer + releaser
