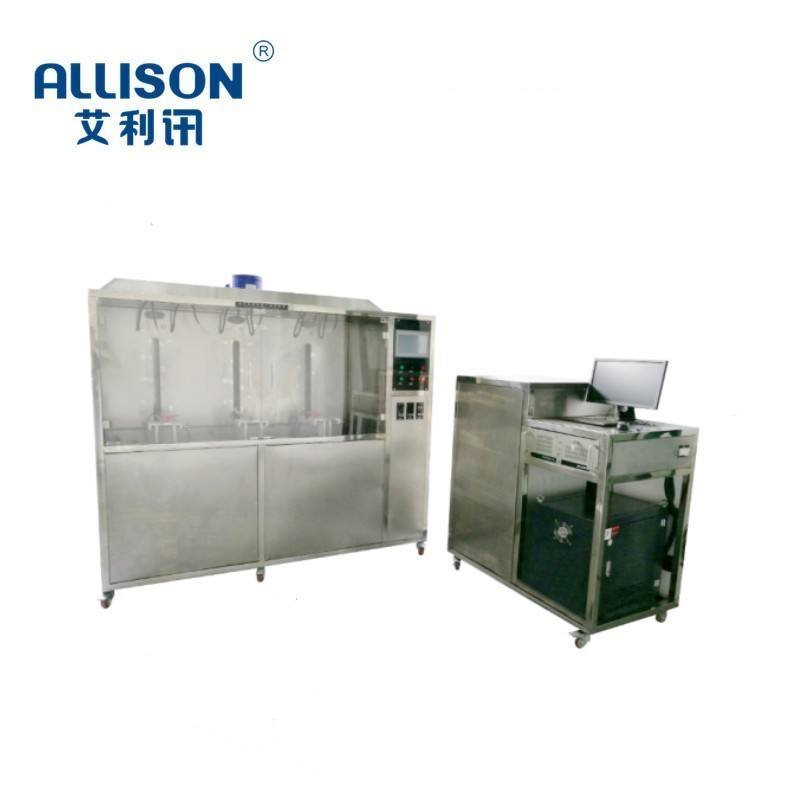

Designed for accelerated aging test of metal heating tubes. The machine is controlled by PLC + 21-inch display, and the related data can be displayed and saved in the interface. The main parts of the machine are imported and domestic well-known brands, effective guarantee of the overall performance and reliability of the equipment. The related test data is exported by USB data.

Applicable Industries: heating pipe manufacturers, small household appliances industry, chemical industry

Technical Parameters

 1, test station: 2-10(Test Class: Life Class/performance class)

2, Voltage Detection: AC 0-300 V, accuracy 0.25 level

3, current detection: AC 0-60 A,

4,power Detection: AC 0-8000 W, accuracy 0.25 grade

5, water temperature detection: 0 ° C -100 ° C, accuracy 0.25 grade;

6.Test water quality: tap water/ratio test water

7.Test power-on time: 0-999999s can be set

8.Test power-off time: 0-999999s can be set

9.Test times: 1-999999 can be set, and real-time display the current number of times

10, test data: USB Export

11, data display: curve/digital display

12, device power: 220V 3.5 kw (without load power)

13, device size: 1600X 750x 1650 units MM
