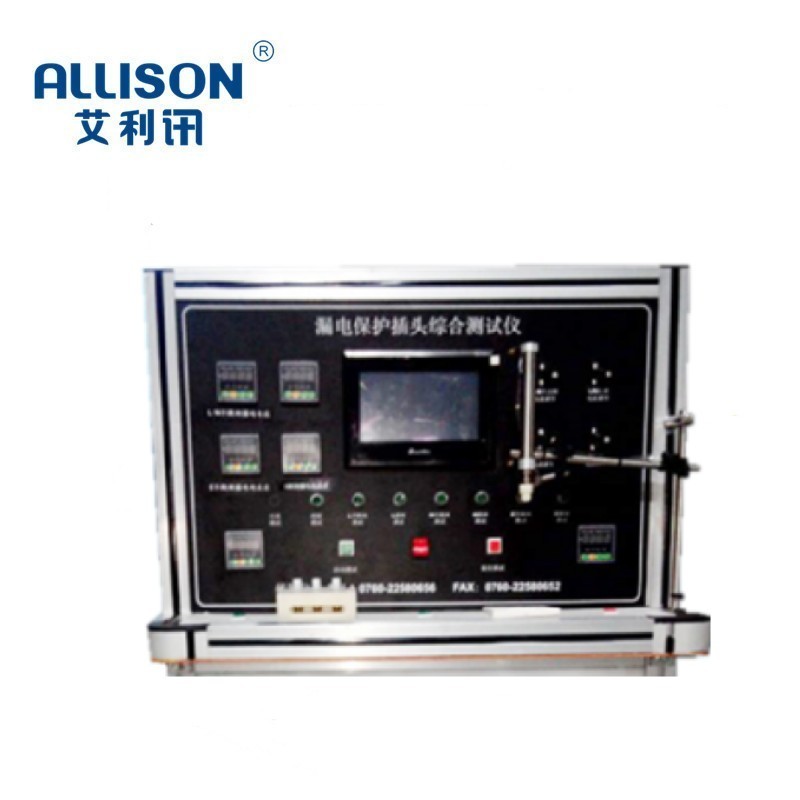

Leakage protection plug performance comprehensive tester, according to IEC61540 and other leakage protection related standards, using advanced technology development and design; The test-bed adopts the straight cylinder to replace the manual action, and completely simulates the manual action to the leakage protection plug and the leakage protection device

The leakage current is regulated by pure resistance and high precision correction module, the current precision is higher and more stable; the trip time is controlled by 4.0 mhz crystal oscillator; Imported and domestic advanced devices with high sensitivity, stable and reliable in the test process

Technical parameters:

 1, station number: 1(optional)

2, test leakage current: 5-50mA continuously adjustable

3, no trip current: 5-50mA continuously adjustable

4, leakage current accuracy: ± 0.1 MA

5, action time: 0-9999ms

6, action time accuracy: ± 1MS

7, test voltage: 0-300V continuously adjustable

8, voltage display accuracy: ± 0.5V

9, fixture mode: universal clamping mode, key sequence can be set

10, working voltage: 220V 5KW

11, device size: 500X500X1600 units MM
