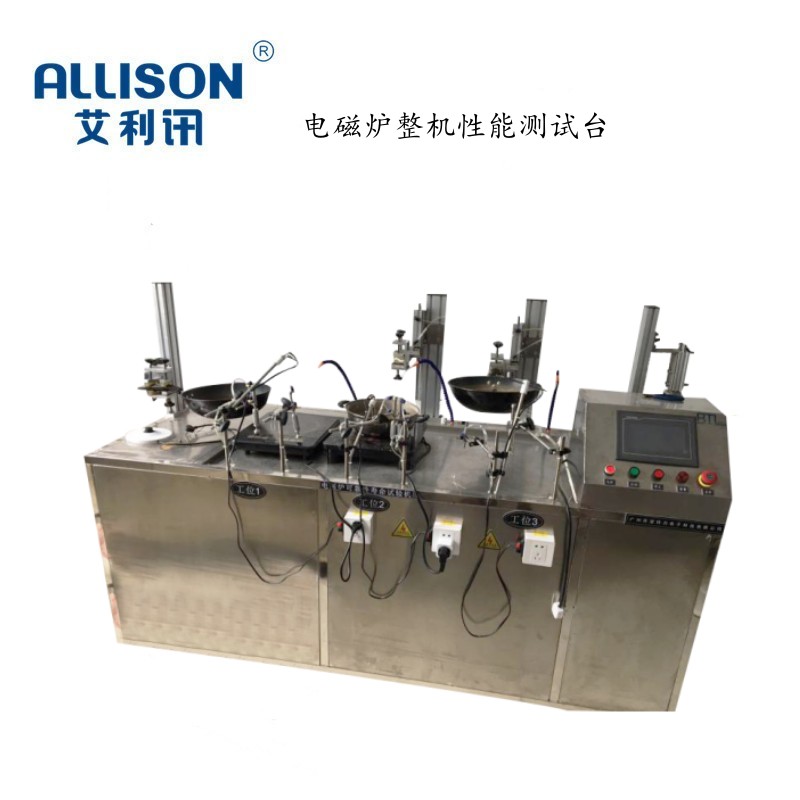

The life testing machine for magnetic furnace is made according to GB4706.52 -2001. PLC control, with the touch screen

 to complete the data display and monitoring. Each station can be switched on or off separately. The detection function includes

the aging test of the whole machine, the moving magnetic field cutting test, the handle durability test. The equipment is used to

test the integrated service life of the electromagnetic furnace products

It can test many products in 0-60 ° C, humidity & Lt. 95% . In the circuit design, the control circuit and the power supply circuit of

the induction furnace are completely independent to eliminate the possible interference and improve the reliability of the system.

Technical parameters:

1.Control system: PLC + 7-inch Touch Screen

2.Transmission system: pneumatic + mechanical transmission

3.Test station: 3-5,

4.z three-dimensional adjustable

5. test stroke: more than 100mm or custom

6. test speed: 5-850mm/s settings adjustable

7. test times: arbitrary numerical preset

8.power supply: 220V 2.5 kw
