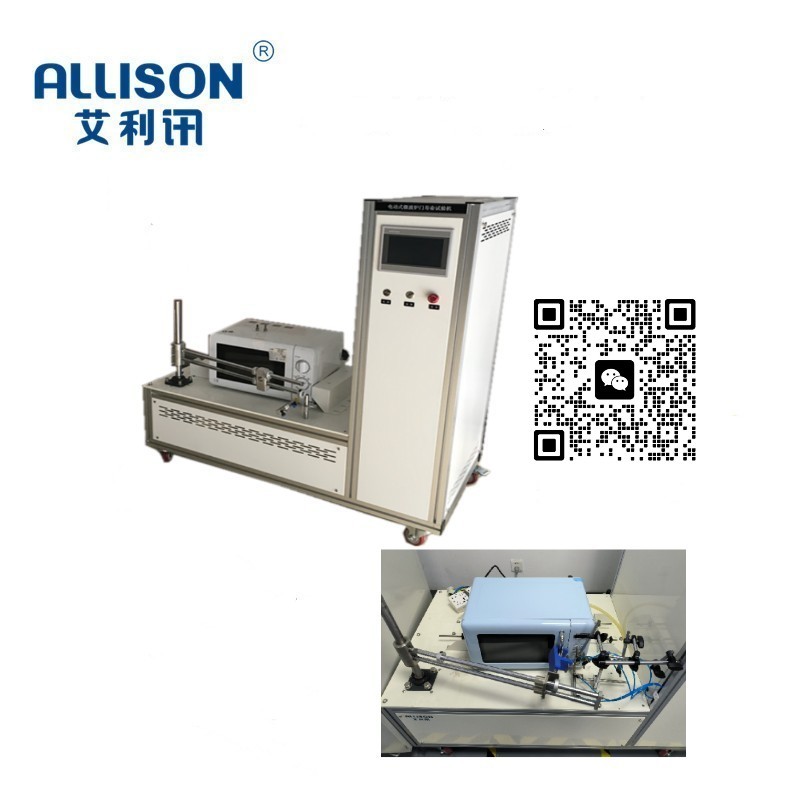

The open-close door tester is mainly used for the open-close durability test and hinge life test to test the quality and reliability of the door.

Stepper motor as a driving source, push rod for reciprocating rotation movement, thus completing the cabinet door“Open and close” reciprocating

action. With the help of PLC control and flexible fixture, it can meet the type requirements of many kinds of washing machine/electric oven doors, with

strong versatility, simple operation, convenient control and low failure rate

Main technical parameters:

1, detection station: Single Station

2, Touch Screen: 7-inch color touch screen,

3, PLC: Mitsubishi;

4.Motor: Step + Drive

5.Open/close speed: open/close

6.speed 1.5 m/s ± 50% adjustable

7.Open/close speed: open/close angle 0-13,000-10 times/min adjustable,

8.The mechanical arm of opening and closing door test force value: 10N-200N adjustment

9. counting/timing: 99999S

10.test method: Up and down door

11. test equipment size: 1200X550X1480(high) MM

12. equipment power supply: 220V 1.5 kw
