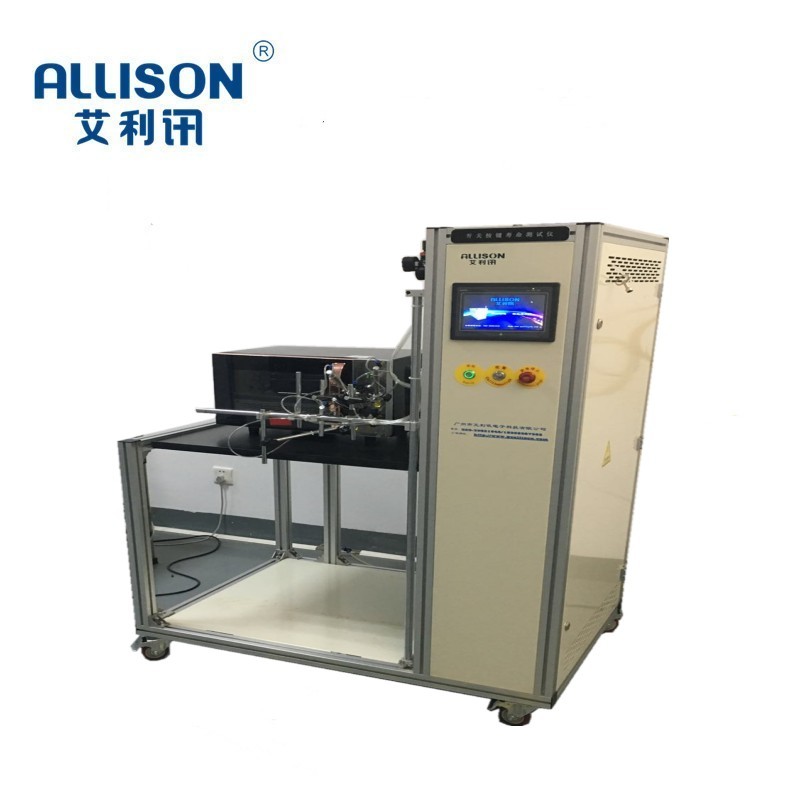

The switch door life testing machine is suitable for the durability testing of the buttons on the control panel

such as the touch panel, the mechanical keys and so on. PLC and touch screen control system, stable operation,

easy maintenance, through PLC program control, can be a single-point button/multi-point button linkage operation

and program cycle. Real simulation of the use of button linkage

Technical parameters:

1、 test station: Single Station

2、 each station test 4-6 keys, program cycle action

3、for different operation panel size, fixture can be replaced

4、 control interface: 7-inch touch display, with USB data export function

5、control mode: single-point Control/multi-point Linkage Program Control

6、test head for wear-resistant insulation silicone/touch metal materials,

7、 Test Speed: 10-40 times/min adjustable

8、action travel: adjustable (according to the product)

9、Test Times: 1-999999 arbitrary set

10、Power: 220VAC, 2.5 KW

11、 equipment size: 1200X650X1650MM
