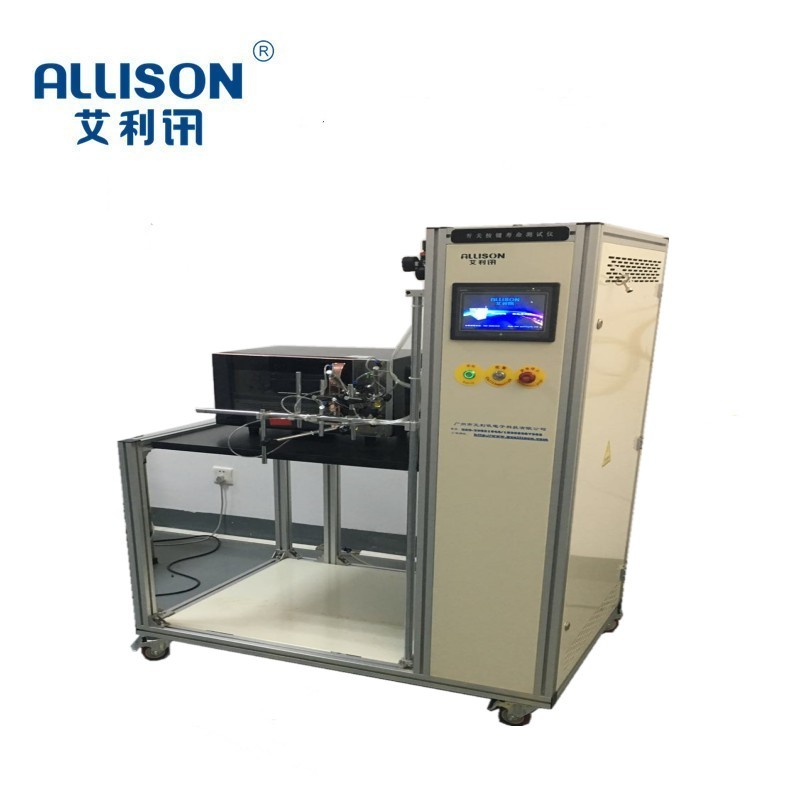

The key life testing machine is suitable for the durability testing of the buttons on the touch screen panel, mechanical keys and

 other related control panels. PLC and touch screen control system, stable

 operation, easy maintenance, through PLC program control, can be a single-point button/multi-point button linkage operation

and program cycle. Real simulation of the use of button linkage.

Technical parameters::

1. test station: Single Station

2..each station test 4-6 keys, program cycle action

3..for different operation panel size, fixture can be replaced

4. control interface: 7-inch touch display, with USB data export function

5. control mode: single-point Control/multi-point Linkage Program Control

6. test head for wear-resistant insulation silicone/touch metal materials,

7.Test Speed: 10-40 times/min adjustable

8. action travel: adjustable (according to the product)

9. test times: 1-999999 Arbitrary Settings

10. Power: 220VAC, 2.5 KW

11. equipment size: 1200x650x1650mm something
