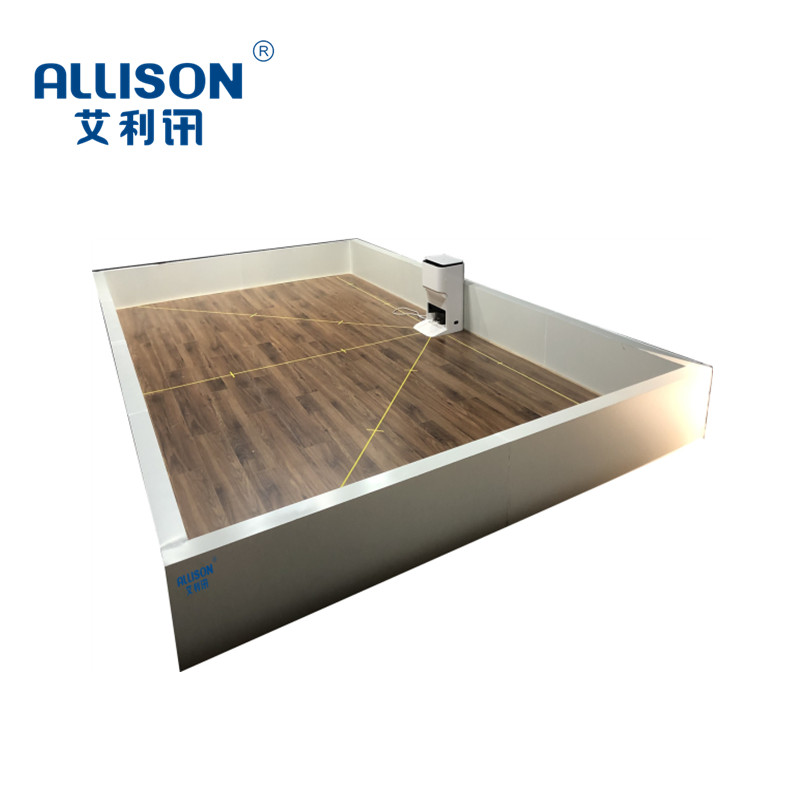

The automatic recharge test room for robotic vacuum cleaners is designed according to the test method in

section 6.3.6.1 of the relevant standard QB/T4833-2015. By testing the main components of the room body,

power supply socket, testing floor and ground signs in the testing area

Mainly used for testing robotic vacuum cleaners within a specified spatial range, conducting robot recharge

tests through different position points. Perform startup recharge at different angles. Test and record based

on the number of experiments and failures. And use formulas to calculate and analyze the success rate of

recharging and docking of robotic vacuum cleaners

Main parameters:

1. Test area size: 5000X3000X300 (unit: mm）

2. Composition materials: enclosure board, fireproof multi-layer board, outer white aluminum-plastic panel

3. Test frequency: 0-99999 times

4. Test angles: 0 degrees, 45 degrees, 90 degrees, 135 degrees, 180 degrees

5. Test frequency: 0-999999 times can be set

6. Test time: 0-999999 seconds, minutes, hours

7. Power supply: 220V 50Hz 1.5KW
