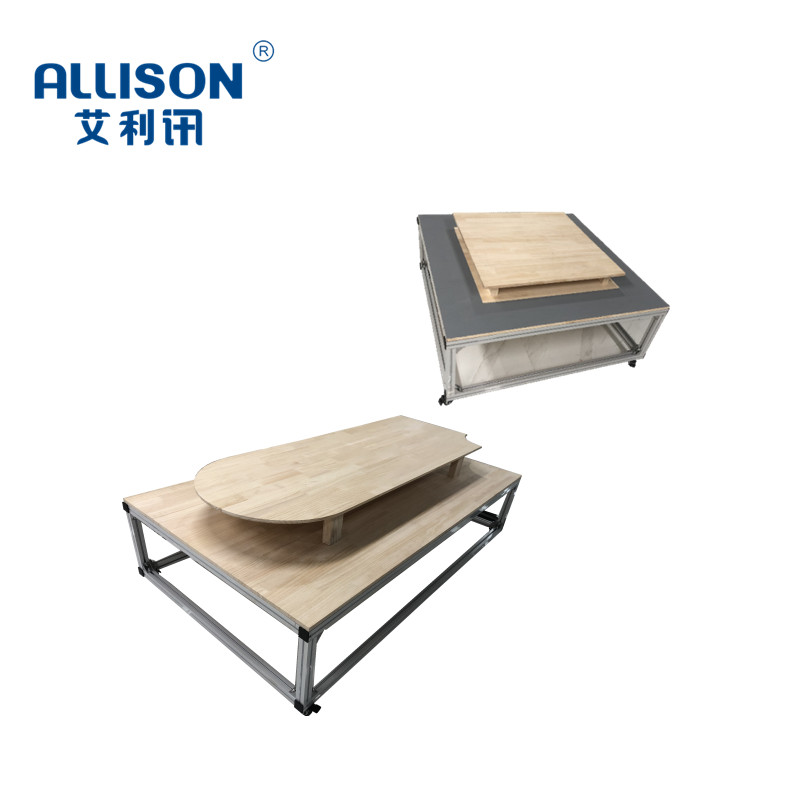

According to Chapter 6, 6.3.4 of QB/T4833, it is manufactured to meet the requirements for anti fall capability testing, and is mainly suitable for testing the anti fall capability of robotic vacuum cleaners.

Related parameters  ：

1. The drop ability test is applied to the positive side with a unit size of 800X800 mm (within 2-3 times the maximum external size of the robot to suit the size).

2. Substrate 1200 * 1200 Unit: mm

3. The testing height is 100mm.

4. The bottom plate is equipped with movable casters for easy mobility

IEC 62849:2016, Chapter 9: Standard Manufacturing. The experimental platform consists of a base and steps, assembled from pine boards of the same material

1. Base test bench size: 2000X1150X1100 length X width X height unit: mm

2. The step size is R350, and the half circle platform is composed of 1850X700X175 units: mm
