1. Implementation standard: Manufactured in accordance with IEC 62885-7-2020, Section 6.2 and 6.4.5 Test Methods.

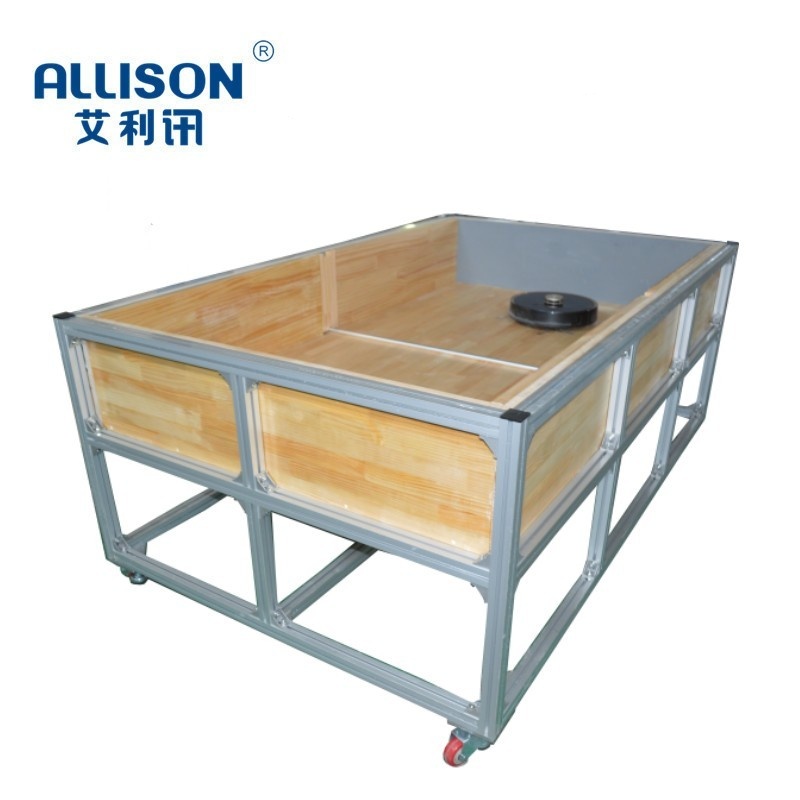

2. The test bench is assembled using 40X40 GB aluminum profiles and test wooden boards.

3. The frame is assembled from untreated 20mm pine boards, with an inner frame size of 2000mm, an inner width of 1150mm, and a railing height of 300mm

4. The minimum increment of gap is 1mm

5. Initial threshold value: 17mm

6. Square threshold: 1144*40*X (untreated pine board), with an adjustable X value ranging from 0-30mm

7. Cylindrical thresholds, (unprocessed aluminum), diameters 13, 14, 15, 16, 17, 19, 20, 21

8. Fixing method: quick-release clamp

9. Overall dimensions: 1350X2580X850 (width X depth X height) Unit: MM
