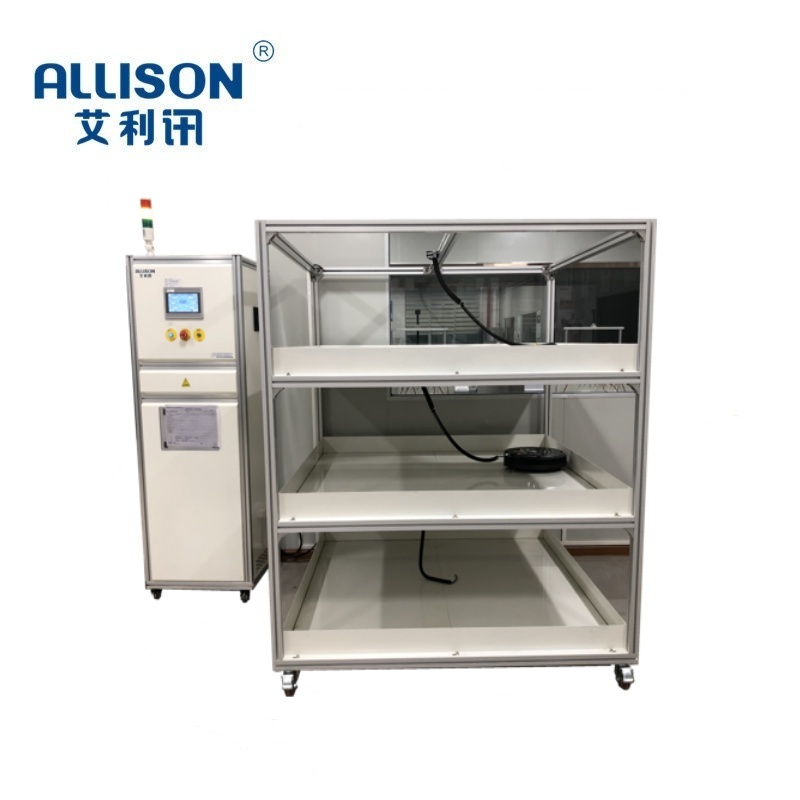

Vacuum cleaning robot whole machine running machine aging test rack

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: Vacuum robot running test bench/lifespan testing machine. The test rack adopts a three-layer distribution, and each layer can switch to different test floors according to actual testing requirements to simulate walking tests on different floors. The testing framework is composed of aluminum profiles and steel structures. Uninterrupted power supply is provided to each floor sweeping robot through an external DC power supply and a ten thousand conductive ring to ensure long-term walking life testing of the sweeping robot. The testing machine is controlled by PLC program, and the relevant values are set on a 7-inch touch screen. The relevant detection data can be exported through USB

Main technical parameters

1. The dimensions of the robot lifespan test framework are 1.8m in length, 1.5m in width, and 500mm in height per layer

2. Three workstations can operate independently;

3. Test flooring: marble tiles, solid wood flooring, short haired ASTM LEVELLOOP carpet, smooth pine board

4. Protective barriers are installed around the surface of each layer of the testing device to meet the impact requirements during the operation of the robot.

5. The three robots on each set of equipment are powered by a DC power supply

6. Test station: 3 stations

7. Test bench size: 1500 × 1500mm;

8. Supply voltage: 0-36V (DC) Current: 0-20A

9. Detection method: current, voltage, power

10. Control mode: PLC+7-inch touch screen display

11. Equipment power supply: 220V 3.5KW

12. Equipment size: 2000X1550X1650 in millimeters
