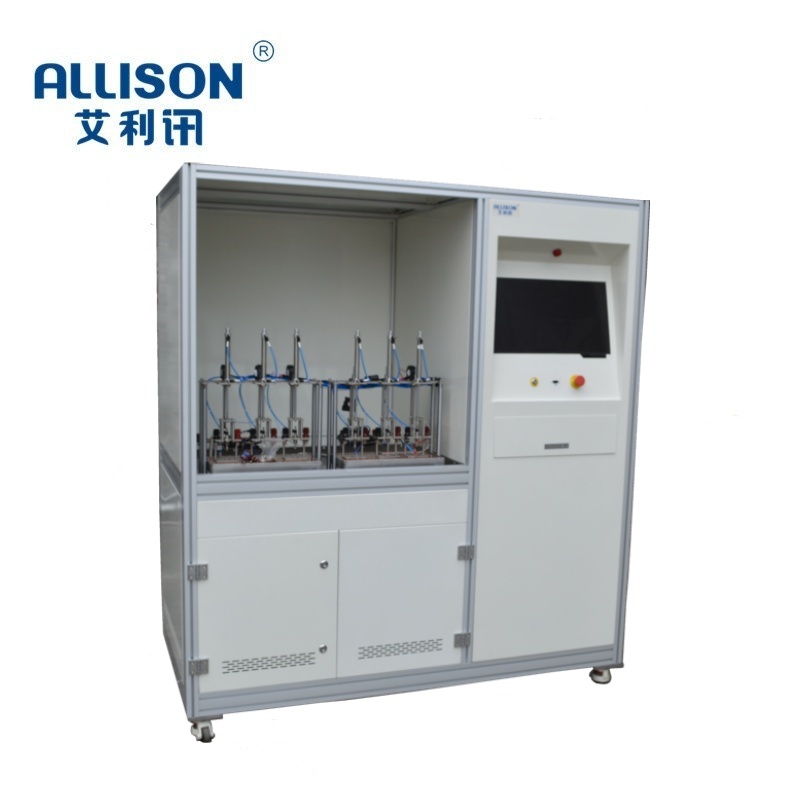

1. The equipment meets the relevant requirements of Q/DR 0532.05-2007 standard; Specially developed for the lifespan testing of manual temperature controllers for water heaters, the machine adopts a PLC processor+computer+display, and relevant data can be set, displayed and saved in the interface. The main accessories of the machine are imported and well-known domestic brands, effectively ensuring the overall performance and reliability of the equipment;

2. Life test: The manual thermostat probe is heated at a constant speed of 1K/min within the ambient temperature range of 97-110 ° C, and then turned off (after turning off, the testing equipment needs to automatically reset it). The number of actions is recorded and carried out 1000 times.

3. It can simultaneously perform multiple repetitive and long-term life tests on 6 products with different structures (samples that can automatically test non automatic reset structures), the same temperature value, and different rated currents. Each tested product does not interfere with each other and is independently tested. It has intelligent monitoring function and can also perform performance analysis, data storage, and export printing on each product.
