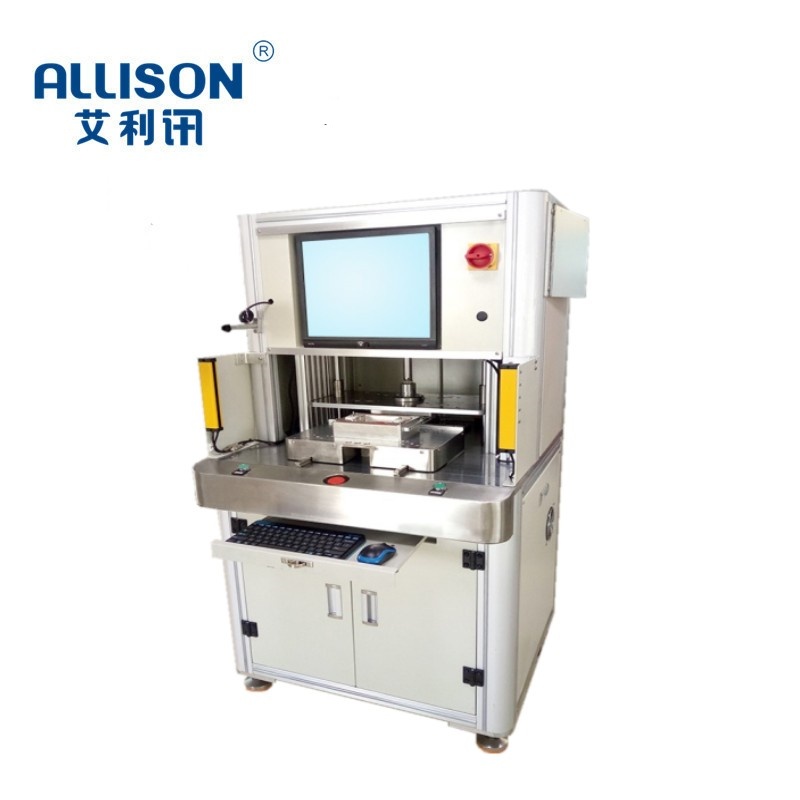

The filter filtration rate detection equipment is mainly aimed at detecting the protective effect and filtration efficiency, flow resistance, etc. of dust containing products such as filters and filter screens in the market. The testing equipment is designed and manufactured with reference to relevant testing standards and end-user requirements. The test bench uses a cold gas aerosol generator and our independently developed gas volume gel testing device to generate particle size. Continuous and stable aerosol particles are output through pressure regulation. The laser counter uses imported high-precision particle detection sensors to measure the sample before and after filtration simultaneously. The differential pressure transmitter calculates the pressure difference between upstream and downstream to obtain data such as resistance value, flow rate, and filtration effect during the testing process.

Suitable for standards:

JG/T22-1999 Performance Test Method for General Ventilation Filters

2. American ANSI/ASHRAE52.1-1992 Test Methods for Air Purification Devices for General Ventilation

3. European EN779:2002 General ventilation air filters - Determination of filtration performance

4. Test of Japanese JISB9908:2001 Ventilation Air Filter Device and Electric Air Purifier

Testing method

5. European EN1822 high-efficiency filter

6. ISO-29463 High efficiency filters and filter media for removing particles from the air

7.GB2626 GB32610-2016 YY0469-2011 GB19082-2009 GB19083-2010
