This set of equipment can meet the requirements of IPX1 and IPX2 specified in GB4208 IEC60529 GB7000.1 "Degrees of Protection Provided by Enclosures". This product is mainly suitable for waterproof performance testing and IPX1 and IPX2 waterproof level testing of communication products, automotive components, household appliances, outdoor lighting and signal devices, and other products.

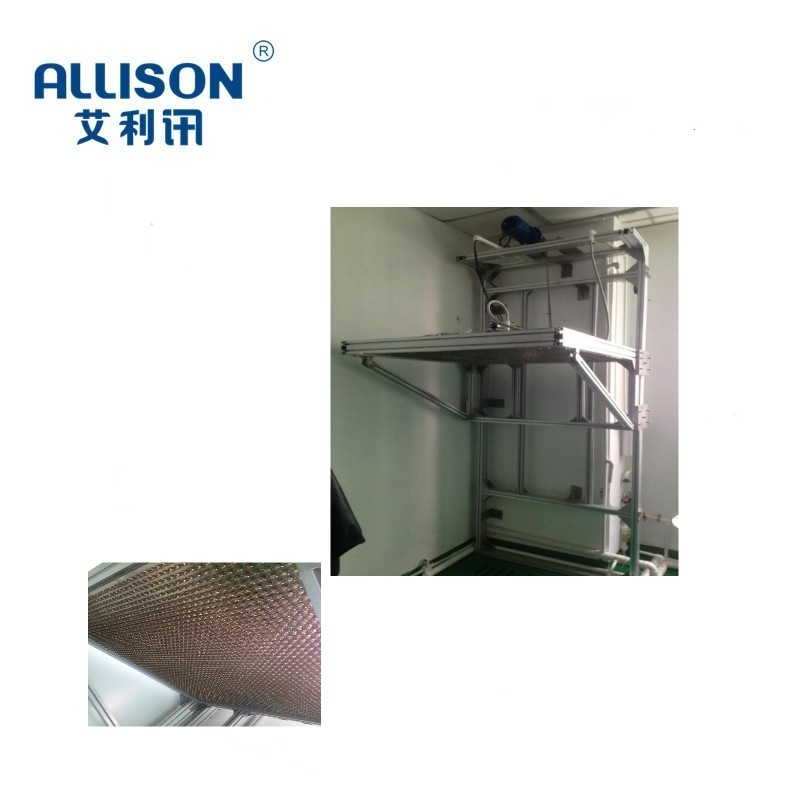

IPX1-IPX2 Drip Rain Test Chamber Open Type

Drip tray size: 1000×1000×150; (single mm) can be customized

Precipitation 1 to 5 mm / min; (±0.5 mm, adjustable)

Drip area: 1.0 square meters

Drip hole diameter: 0.4 mm; drip hole spacing: 20×20 mm

(25X25)

Test bench: 500×500 (L×W) Customized turntable according to the sample

Test bench speed: 0-17r/min (adjustable)

The height of the test turntable is adjustable

Drip tray height: (adjustable)

Control mode: Mechanical / Mitsubishi PLC control

Turntable motor: Stepper motor, meets IPX2 every 2.5 min turn 90 °

Power supply: 220V 4.5kw

Equipment size: 1200 X1250 X 2050 Unit: MM
