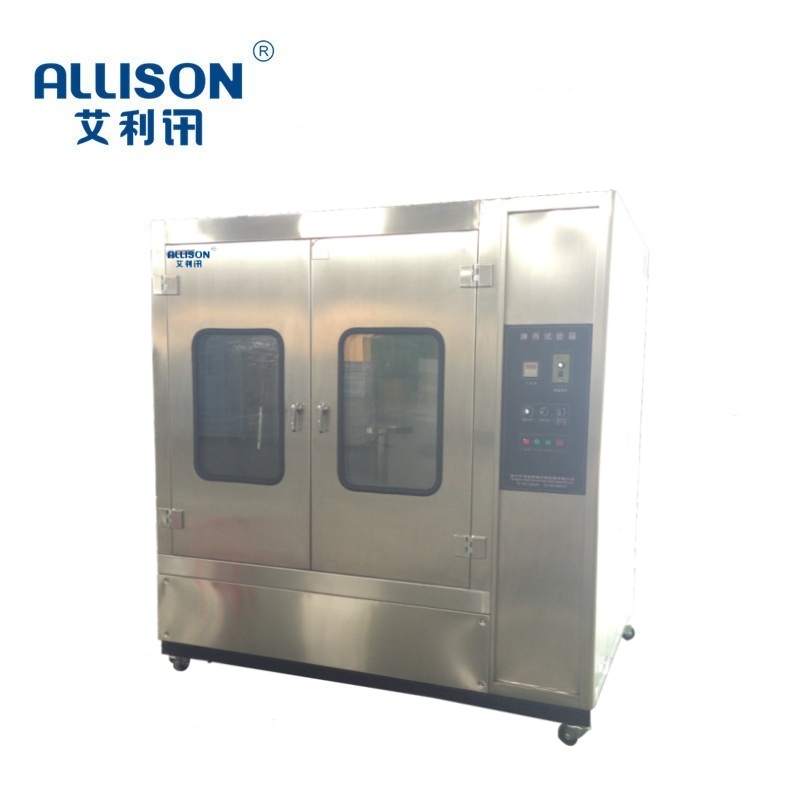

The box-type rain test machine can meet the IPX3, IPX4, waterproof grade test and equivalent waterproof test methods specified in4208 IEC60529 GB7000.1 "Enclosure Protection Grade".

1. Introduction

The IPX3IPX pendulum rain test machine can meet the IPX3, IPX4, waterproof grade test and equivalent waterproof test methods specified in GB4208 IEC6059 GB7000.1 "Enclosure Protection Grade".

2. Main technical parameters:

1. Model: QX-P3-4A

2. Pendulum radius: 400/600/800/1000/1200/1400/100

3. Spray hole: Φ0.4; two hole spacing: 50mm;

4. Pendulum amplitude: ±0--10°

5. Pendulum outer radius: Φ20mm (stainless steel);

6. Pendulum height: 1.4m from center of the pendulum to the ground;

7. Rainwater pressure: 50--300kpa (adjustable);

8. Water flow: displayable9. Test bench: turntable 300-500mm; speed: 1--17r/min

10. Control mode: mechanical / Mitsubishi PLC control

11. Power voltage: AC220V, 4.5KW

12. Equipment size: 2000 1200 X 1650 unit: MM
