ISO16750-1-2006 Environmental conditions and tests for electrical and electronic equipment of road vehicles;

ISO20653 Road vehicles - Protection level (IP code) - Protection of electrical equipment against foreign objects, water, and contact; GMW 3172 (2007) General Requirements for Vehicle Environment, Reliability, and Performance; VW80106-2008 General Test Conditions for Electrical and Electronic Components in Automobiles; QC/T 417.1 (2001) Automotive wire harness connectors Part 1, IEC60529 Electrical enclosure protection classification level (IP) code; GB4208 Shell Protection Level.

2. Relevant Parameters:

1. Interior Dimensions of the Box: 800×800×800 (MM. (Dimensions designed according to customer's sample)

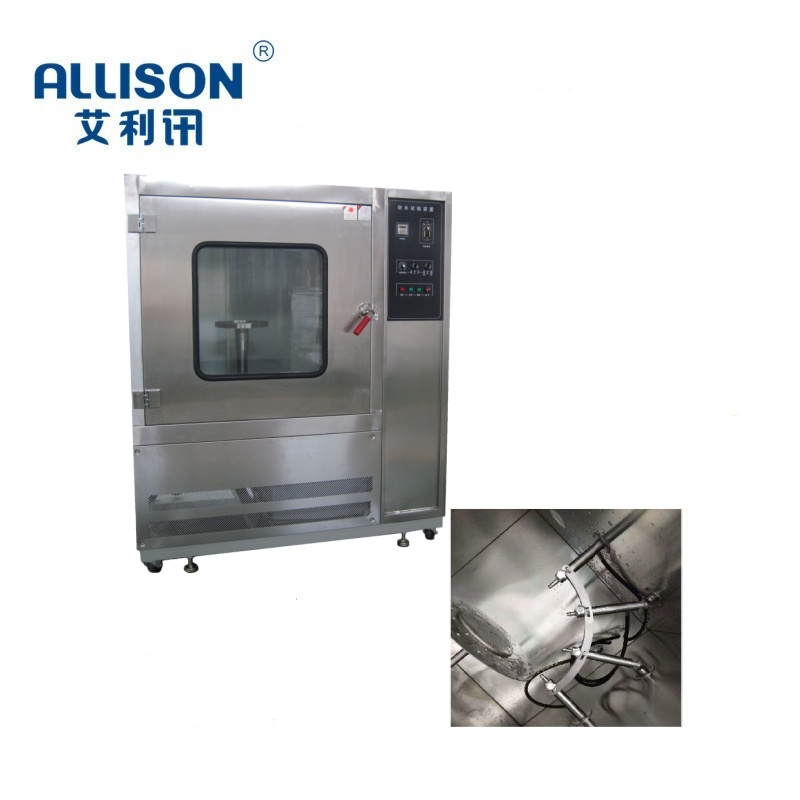

2. Equipment Structure: 304 stainless steel water tank with a front-facing scale-marked organic glass window.

3. Nozzle Angle: 0°, 30°, 60°, 90° at a distance of 100～50mm (adjustable)

4. Flow Rate: 14～16 L / min.

5. Water Pressure Range: 8-10M

6. Temperature Regulation Range: Room temperature～ 80°/± 5°C

7. Pressurization System: Stainless steel water pump   frequency.

8. Test Bench Speed: 5～17r/min (adjustable)

9. Spraying Time: 0-9999 seconds/.

10. Control Method: PLC   7-inch touch screen

11. Power Supply: 380V 6.5K
