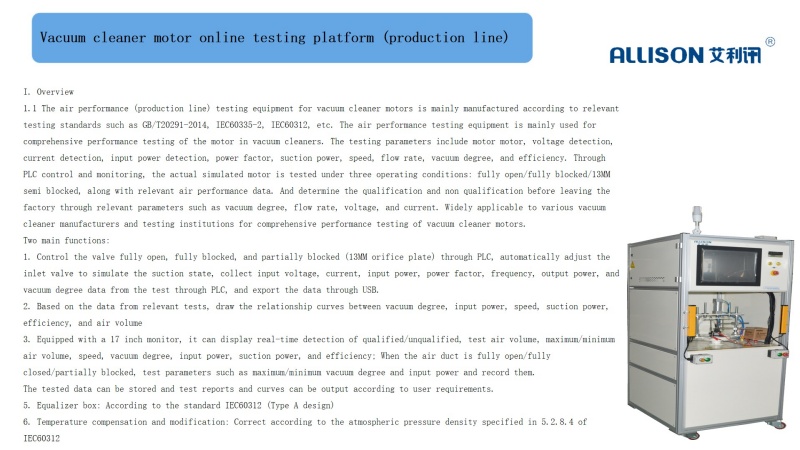

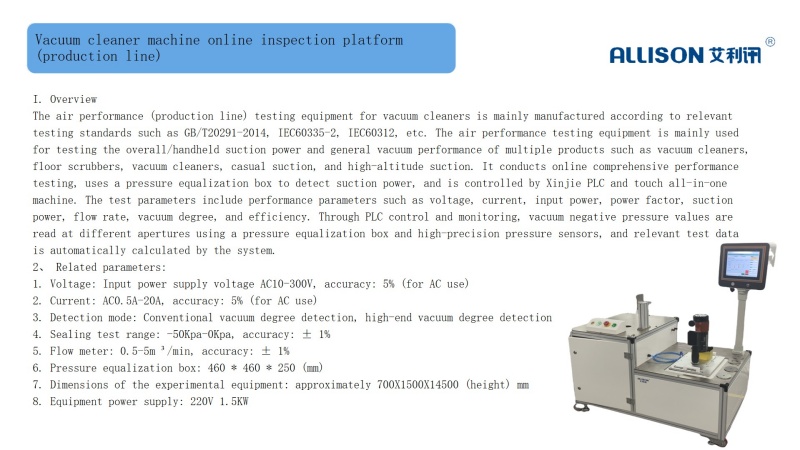

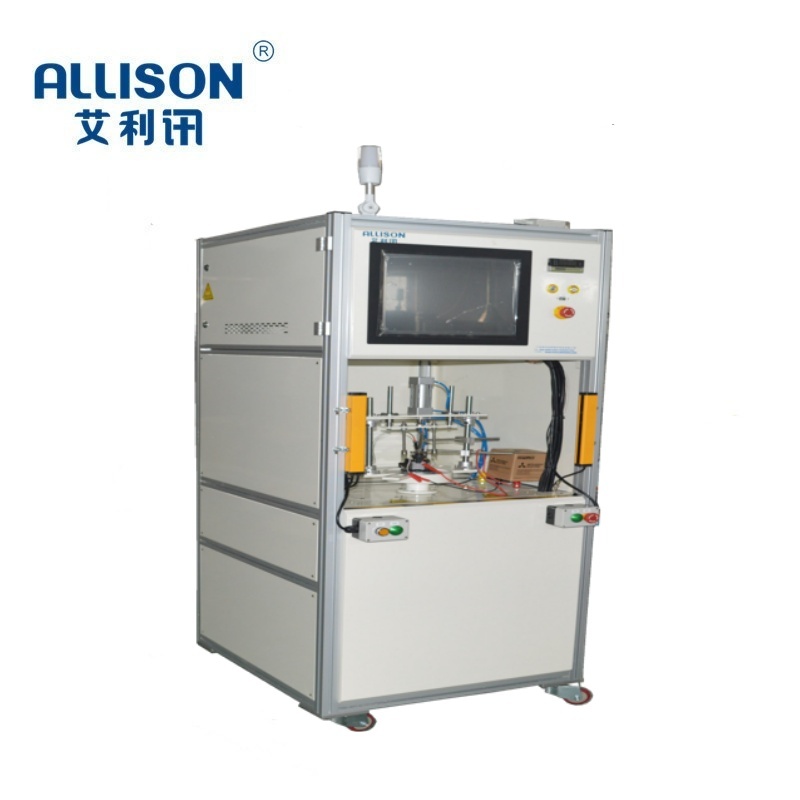

Product Mode： Fixed mode of products： Test Speed： Number of tests： Equipment size： Description: The air performance (production line) testing equipment for vacuum cleaner motors is mainly manufactured according to relevant testing standards such as GB/T20291-2014, IEC60335-2, IEC60312, etc. The air performance testing equipment is mainly used for comprehensive performance testing of the motor in vacuum cleaners. The testing parameters include motor motor, voltage detection, current detection, input power detection, power factor, suction power, speed, flow rate, vacuum degree, and efficiency. Through PLC control and monitoring, the actual simulated motor is tested under three operating conditions: fully open/fully blocked/13MM semi blocked, along with relevant air performance data. And determine the qualification and non qualification before leaving the factory through relevant parameters such as vacuum degree, flow rate, voltage, and current. Widely applicable to various vacuum cleaner manufacturers and testing institutions for comprehensive performance testing of vacuum cleaner motors
