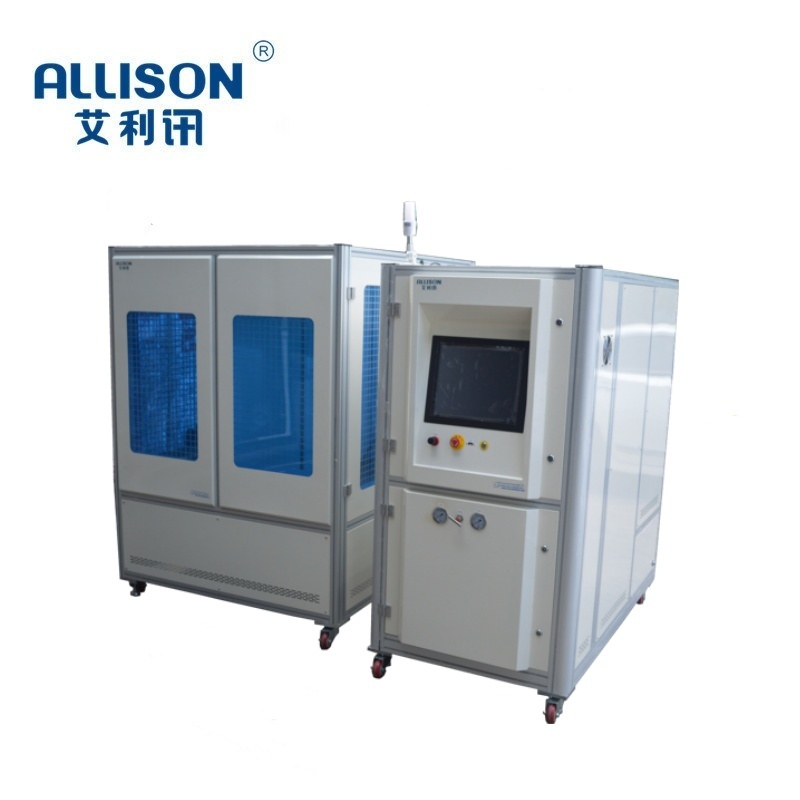

The battery combustion jet testing machine is used for combustion jet testing of lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, battery packs for other portable electronic products that can be carried in a pocket, and handheld electronic products with non user replaceable batteries/battery packs installed. Compliant with standards such as GB31241-2014.

The battery combustion jet testing machine is used for combustion jet testing of lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, battery packs for other portable electronic products that can be carried in a pocket, and handheld electronic products with non user replaceable batteries/battery packs installed. Compliant with standards such as GB31241-2014.

1. The battery combustion injection test device adopts a fully enclosed box structure, and the mechanical and electrical parts of the equipment body are isolated. The entire device is equipped with a pressure relief chamber to ensure that in the event of a battery explosion, the gas and debris generated during the explosion can be instantly discharged through the pressure relief chamber inside and outside;

2. The combustion chamber has explosion-proof and exhaust functions, which can instantly release the pressure generated by the sample explosion and discharge the smoke and dust produced by the explosion. The smoke and dust generated during the experiment are evacuated by the exhaust fan inside the box;

3. The working chamber of the battery combustion test device has moderate corrosion resistance and easy cleaning functions, and can withstand the erosion of corrosive liquids generated by battery explosions, making it easy to clean. The electrolyte generated by the explosion of lithium batteries during battery testing will be discharged through the drainage pipeline of the equipment to ensure that the interior of the equipment is not corroded by the battery electrolyte.

4. The installation of the working chamber has an observation window.

5. The working chamber has a smoke alarm function to determine and alert whether an explosion has occurred.
