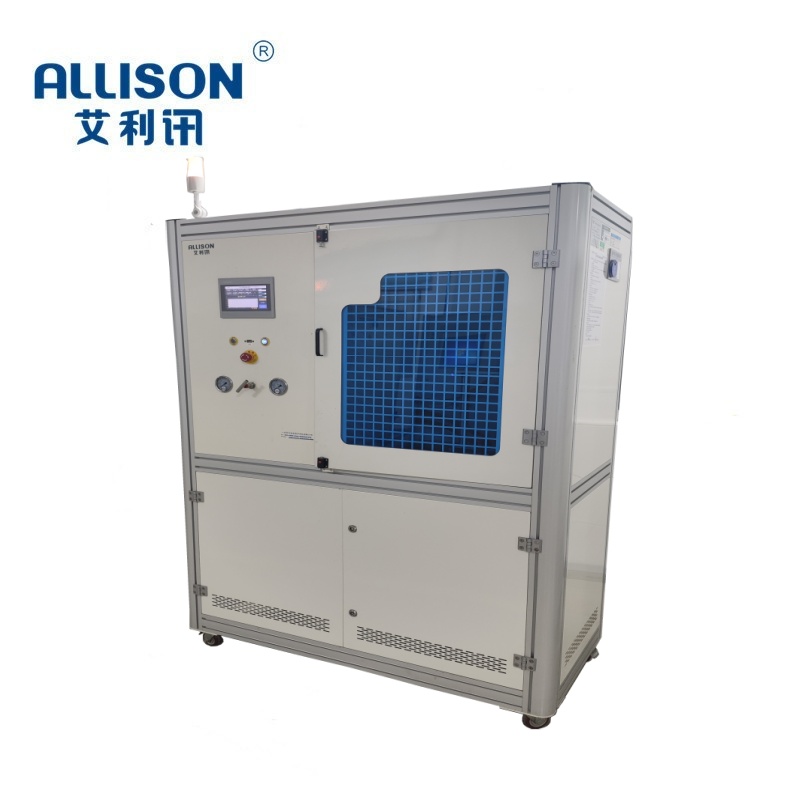

Cleaning steam injection equipment - Steam injection testing machine ISO 16925. Meets the requirements of Volkswagen, BMW, and Mercedes Benz customers, with a pressure of 2MPa (20bar) ± 50Kpa. The lower body flow rate is 6L/min ± 0.21 L/min; Calibration board impact pattern L: 73 ± 5mm, W: 8 ± 1mm; nozzle: EG 2505 and 1/4 PMEG-2506. The testing equipment

is adapted to the requirements of ISO 16925:2021 standard for "Determination of Coating Resistance to High Pressure Water Spray", and can be used for testing the steam spray resistance of coatings in the fields of automobiles, engineering machinery, ships, steel structures, etc., providing accurate and reliable test data support for coating quality assessment.

The steam jet machine is designed specifically to meet the testing requirements of ISO 16925 (Determination of Coating Resistance to High Pressure Water Jet) for paints and varnishes. It can simulate high-pressure steam jet environments and test the spray resistance of various coating samples. It is suitable for high-pressure steam jet performance testing

 of various coatings such as automotive bodies/chassis/wheels, engineering machinery, ship decks/cabins, steel structures/bridges, etc., to evaluate the coating's resistance to peeling, delamination, and adhesion retention. The equipment structure is reasonable and easy to operate, with precise adjustment of various parameters to ensure the accuracy and

 reliability of test data. TL 211-2023 standard steam injection testing equipment
