Test items and related requirements:

1. Test items: flow, current, voltage, differential pressure,

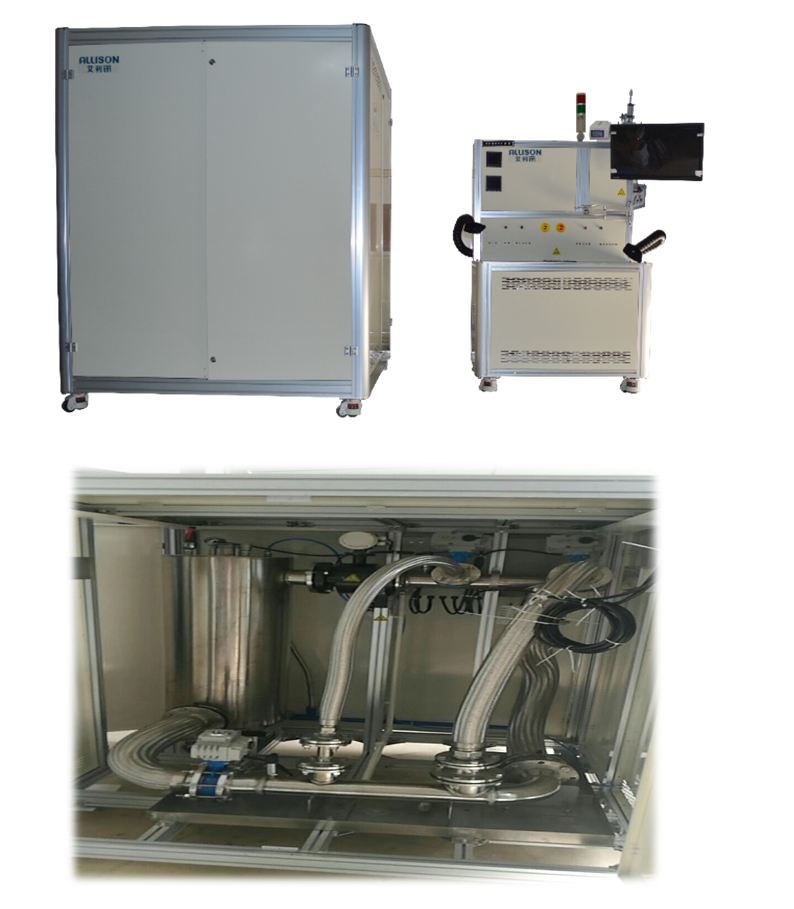

2. The test system consists of a high-precision micro flow tester, a pressure gauge, an ammeter, a differential pressure sensor, and a pipeline;

3. Accuracy: flow ±0.5%, pressure ±1%, current ±0.5 grade;

4. Test water system: switch between three pumps with different diameters

5. Test method: closed loop detection

The main technical parameters:

1. Station: 2-5 stations (optional)

2. Test voltage: AC0-250V DC0~30V, adjustable

3. Test current: 0-20A 0-5A

4. Test power: 0~1500W

5. Flow rate: Using electromagnetic flowmeter 600~6000ML/min (according to customer test products)

6. Water pressure resistance: 0~1.6MPa, accuracy: ±1%

7. Accuracy: plus or minus 1%

8. Water pressure resistance time: 0~999.99M/S can be preset

9. Control method: industrial computer + PLC

10. Structure: control cabinet split type;

11. Dimensions: 2000X1000X1700mm

12. Power supply: 220V 50Hz 4.5Kw
