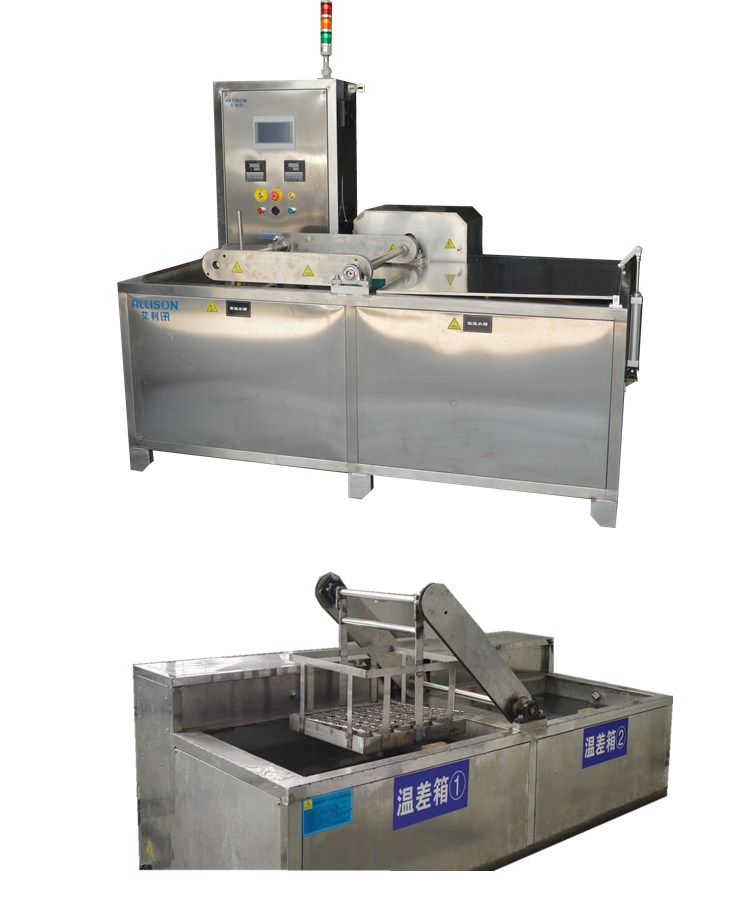

The hot and cold shock constant temperature water system (temperature difference test box) is used to test the durability of glass products under high and low temperature conditions. It is tested by fast-moving products in the high/low temperature environment. Mainly test the stability test of the product under the condition of large temperature difference.

Mainly test products, glass products, wine bottles, cups and Yichang crafts.

Related technical parameters:

1. Equipment water tank area: left hand normal temperature water tank, right hand constant temperature water tank

2. Control mode: dynamic PLC main control

3. Driving device: German SEW motor

4. Angle range: 0~180 degrees (any pause)

5. Temperature range: Rt+10~98 degrees

6. Water temperature uniformity: plus or minus 2 degrees.

7. Test liquid: tap water

8. Tank size: 800X600X550MM high

9. Equipment dimensions: 1850X850X900MM high

10. Power supply: 220V 5KW
