Overview:

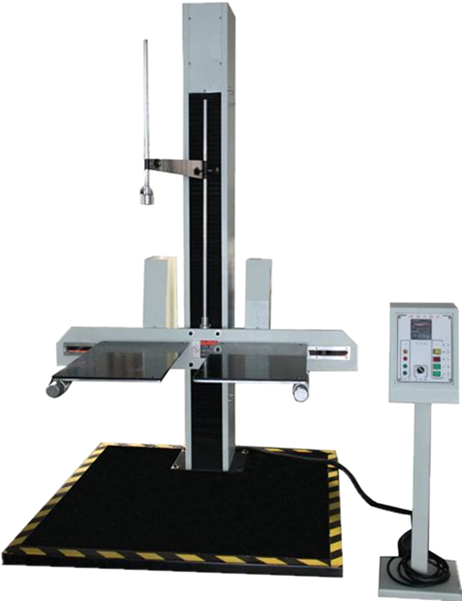

   The drop test machine is designed to test the damage of the product package when it is dropped, and to evaluate the impact resistance of the electronic components when they are dropped during transportation. This machine can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital display height display and adopts a decoder for height tracking, so that it can accurately give the product drop height, and the error does not exceed the preset drop height 2% or 10mm. This machine adopts a single-arm double-column structure, with electric reset, electric control drop and electric lifting device, which is convenient to use; the unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setting, can place the product conveniently, the angle error between the impact surface of the drop angle and the plane of the bottom plate is less than or equal to 50MM

Related parameters:

1. Drop height: 300MM-1500MM

2. The largest sample: 1000MMX1000MMX1000MM

3. Panel size: 1700X1200

4. Precision: 1MM

5. Weight: 350KG

6. Power supply: 220V 2KW

7. Size: 1700X1200X2000 (unit: MM)
