Overview:

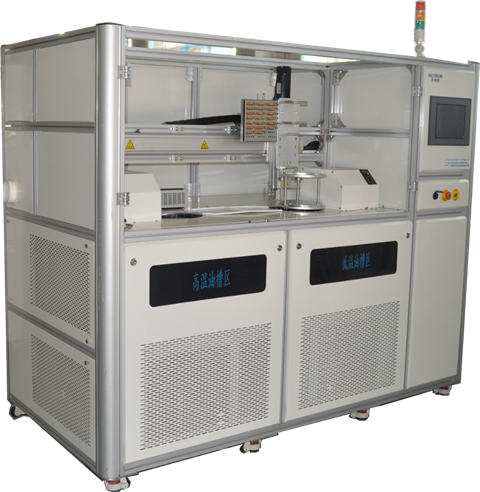

     The performance test bench for alternating hot and cold thermostats is widely used in thermostat industry, electronics industry, petrochemical industry, household appliances and many other industries. Equipment mainly developed for performance testing of thermostats and temperature sensing probes.

The main technical parameters:

1. Test station: 20 stations.

2. Double tank mode: high temperature tank, low temperature tank

3. Resistance measurement range: 0-3000Ω, accuracy 0.001mΩ

4. Alternate cold and hot test speed: 0-30 times/min

5. Temperature range: high temperature RT10-300 degrees, low temperature 0-minus 100 degrees

5. Control mode: one-key test data acquisition mode and life test mode

6. Control mode: 10-inch PLC+ remote mobile phone control

7. Lifting method: servo drive

8. Temperature monitoring mode: 4+1 monitoring

9. Test samples: 2-wire, 3-wire, 4-wire

10. Switching time: maximum speed 3S/time

11. Data display mode: numerical value/curve

12. Power supply for equipment: AC380V 12.5KW
