Thermostat comprehensive performance testing equipment NTC thermostat test GB/T 32224-2020

Product Mode： Fixed mode of products： Test Speed： Number of tests： Equipment size： Description: The thermostat life test bench is suitable for the temperature characteristics of the thermostat and the life test of simulating the actual working condition. Life detection test of thermostat and liquid expansion temperature limiter, Meet the following requirements: GB14536.1-1998 "Household and Similar Electric Automatic Controllers * Part General Requirements" GB14536.10-1996 "Household and Similar Electrical Automatic Controllers - Particular Requirements for Temperature Sensitive Controllers" JB/T3751-1997 "Household and similar bimetal temperature controller". It can effectively and quickly judge and test the life of the test sample.

Main technical parameters

1. Equipment control power supply: 220V 50Hz 8.5KW

2. Test station: 1-10 stations (according to customer requirements)

3. Operating temperature range: normal temperature +5℃+350℃,

4. Temperature accuracy: no more than ±(0.5% of reading + 0.5°C);

5. Constant temperature method: Blast type PID constant temperature

6. Temperature unevenness in the detection area: no more than ±1°C;

7. Detection resolution: 0.1℃;

8. Test speed: the fastest product is about 6 times/min

9. Test times: 1~9999999 can be set

10. Test current: 0-80A (customized according to customer requirements)

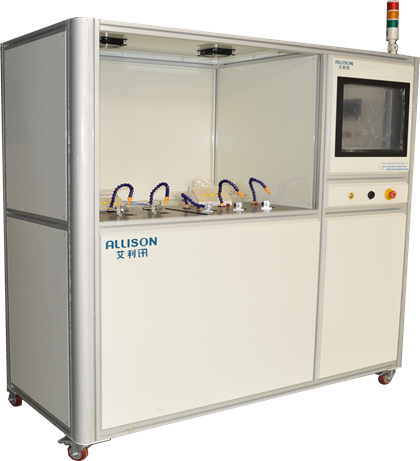

                                   44efc9ade815a19ebd61d7cf07709a76.jpg                                                              8a129a316201e92bb1a01e1630281343.png
