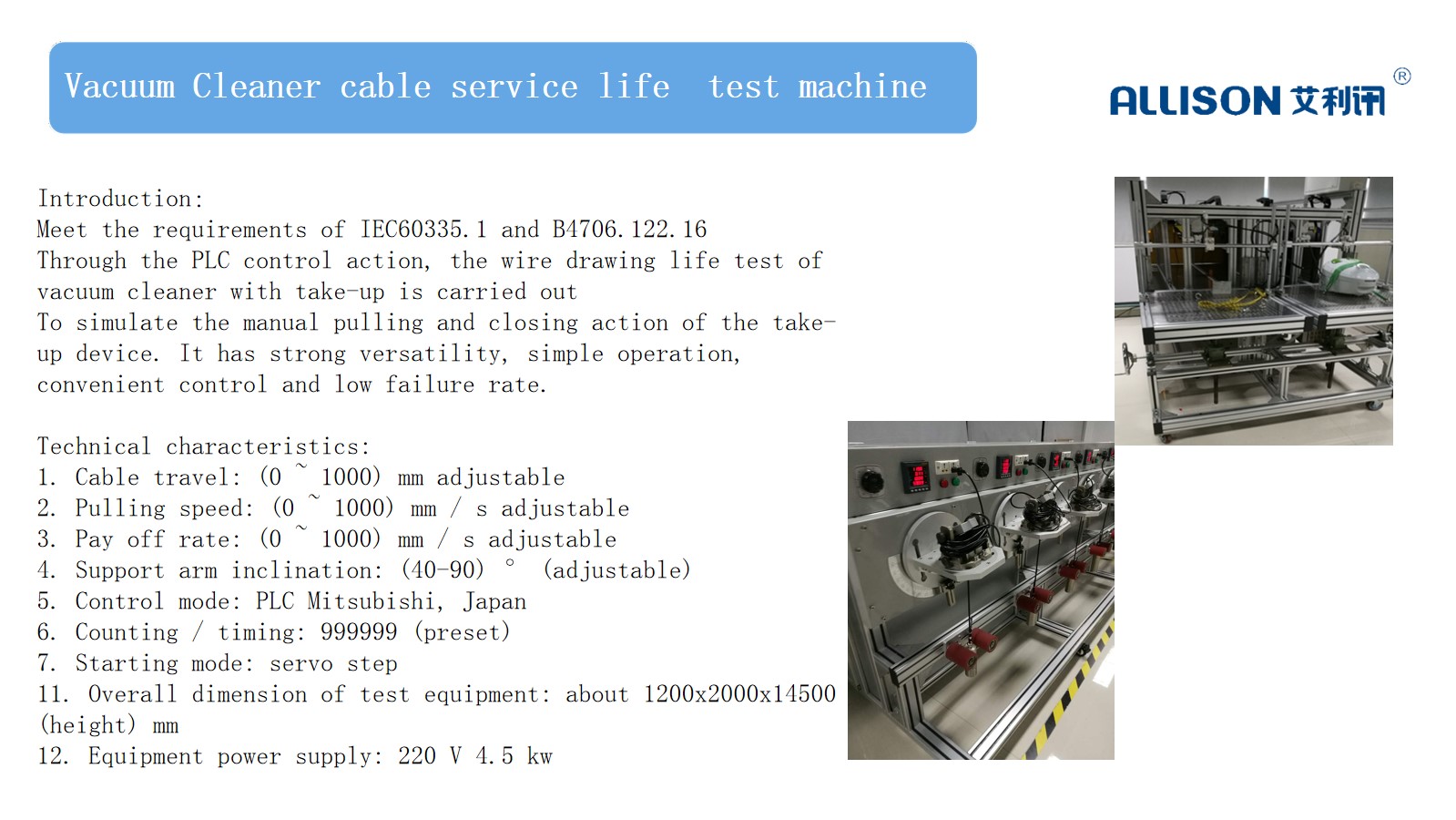

Vacuum cleaner cable puller life test equipment IEC60312 GB4706.7-2014 GB_T20291.1-2014

Description: Comply with IEC60335.1, B4706.122. .16 Requirements Carrying out the cable life test of the vacuum cleaner with the cable take-up through the PLC control action , simulating the action of pulling and retracting the wire take-up by the human hand. It has strong versatility, simple operation, convenient control and low failure rate.low failure rate.

Main technical parameters

1.Cable stroke: (0~1000)mm adjustable

2. Pulling speed: (0~1000) mm/s adjustable

3. Pay-off rate: (0~1000) mm/s adjustable

4. Arm inclination: (40-90)° (adjustable)

5. Control method: PLC Japan Mitsubishi

6. Counting/timing: 999999 (can be preset)

7. Start mode: servo stepping

8. Dimensions of the test equipment: about 1200X2000X14500 (height) MM

9. Equipment power supply: 220V 4.5KW
