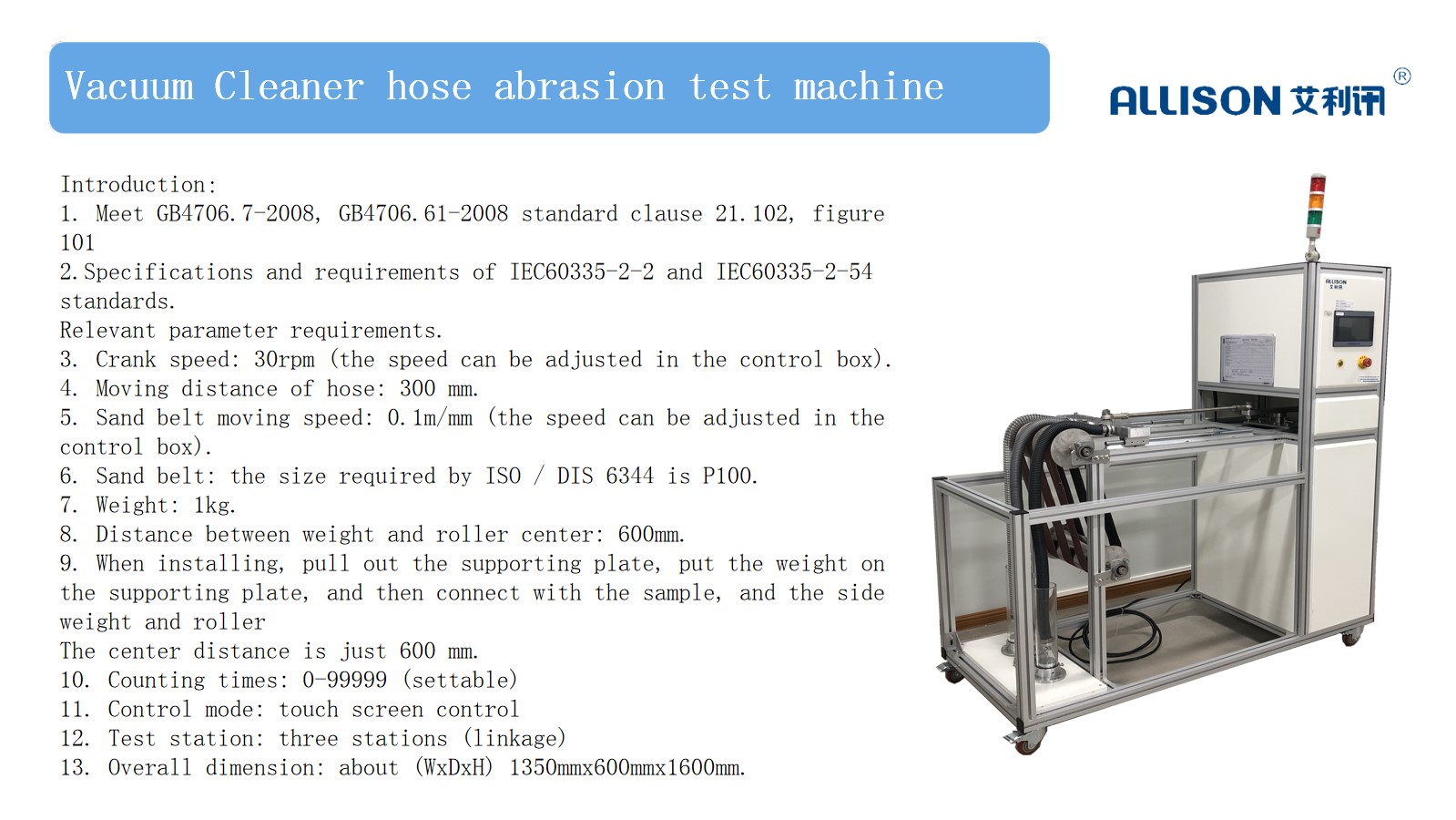

1. Crank speed: 30RPM (speed can be adjusted in the control box).

2. Hose moving distance: 300mm.

3. The moving speed of the abrasive belt: 0.1m/mm (the speed can be adjusted in the control box).

4. Abrasive belt: ISO/DIS6344 requires a size of P100 abrasive belt.

5. Weight weight: 1Kg.

6. The distance between the weight and the center of the roller: 600mm.

7. When installing, take out the pallet, put the weight on the pallet, and then connect it with the sample, the side weight and the roller

The center distance is exactly 600mm.

8. Counting times: 0-99999 times (can be set)

9. Control mode: touch screen control

10. Test station: three stations (linkage)

11. Dimensions: about 1200mmx600mmx1600mm.

12. Equipment power supply: 220V 50/60Hz 2.5kw
