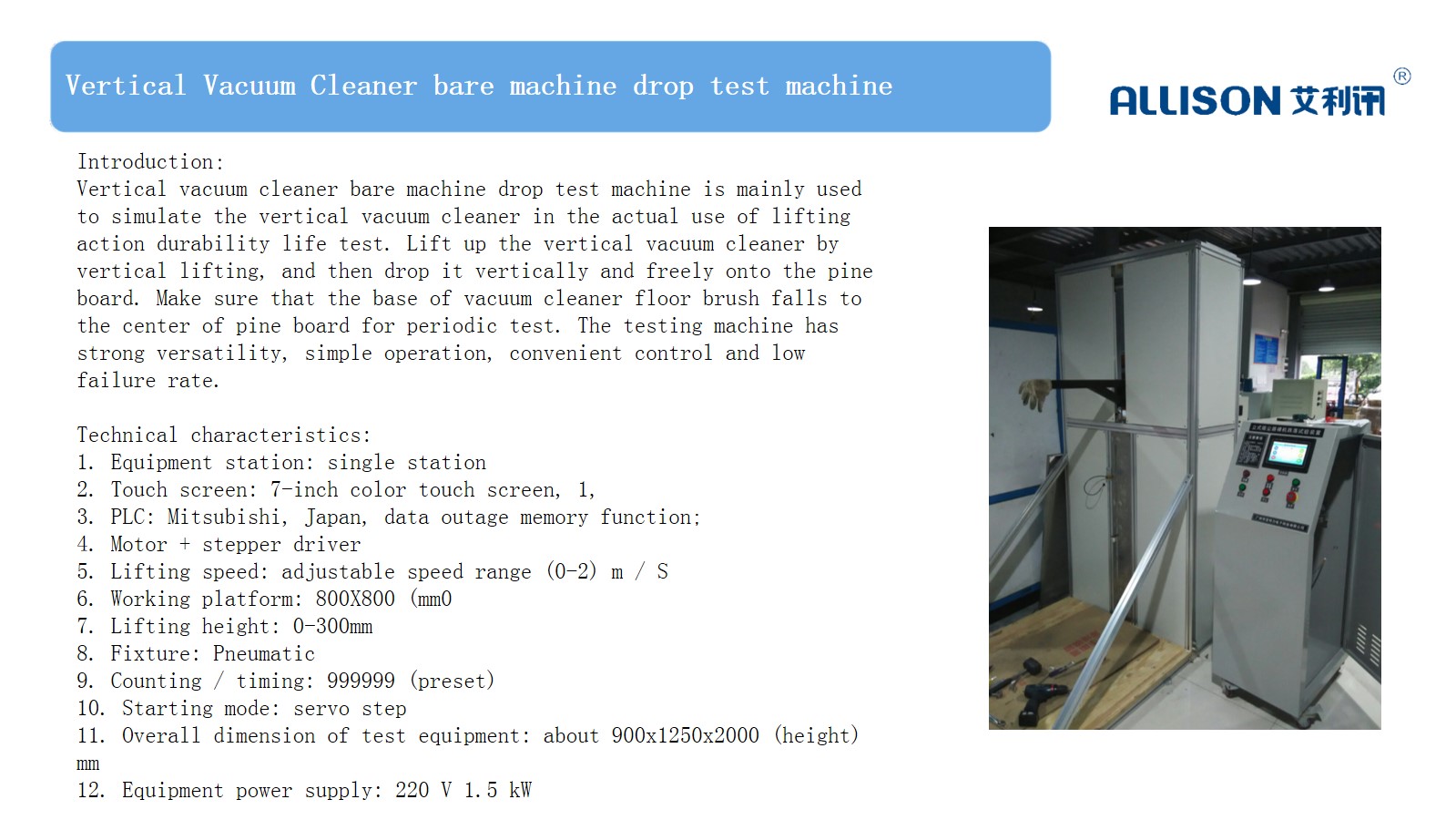

Vertical vacuum cleaner bare metal drop test equipment IEC60312 GB4706.7-2014 GB_T20291.1-2014

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: The upright vacuum cleaner bare metal drop tester is mainly used to simulate the durability life test of the upright vacuum cleaner's lifting action in actual use. Lift the upright vacuum by pulling up vertically, then free-fall vertically onto the pine board. Ensure that the vacuum cleaner floor brush base is dropped to the center of the pine board for periodic tests. The testing machine has strong versatility, simple operation, convenient control and low failure rate.

Main technical parameters



1. Equipment station: single station


2. Touch screen: 7-inch color touch screen, 1,


3. PLC: Japan Mitsubishi, data power failure memory function;


4. Motor: stepper + driver


5. Lifting speed: speed range (0-2) m/s adjustable


6. Working platform: 800X800 (MM0)


7. Lifting height: 0-300MM


8. Fixture: Pneumatic


9. Counting/timing: 999999 (can be preset)


10. Start mode: servo stepping


11. Dimensions of the test equipment: about 900X1250X2000 (height) MM


12. Equipment power supply: 220V 1.5KW


3394debe4d5fc76b08c814028275ccc2.jpgc0e8c42bba5090a907ae211a0e6eb56c.jpg906c351d4dad35530097b4c1c43db93a.jpgf1e6d87a4c90948219f05a7a54e5c112.jpg34f7f87eaab8807ddfb933f4697ea337.jpg
