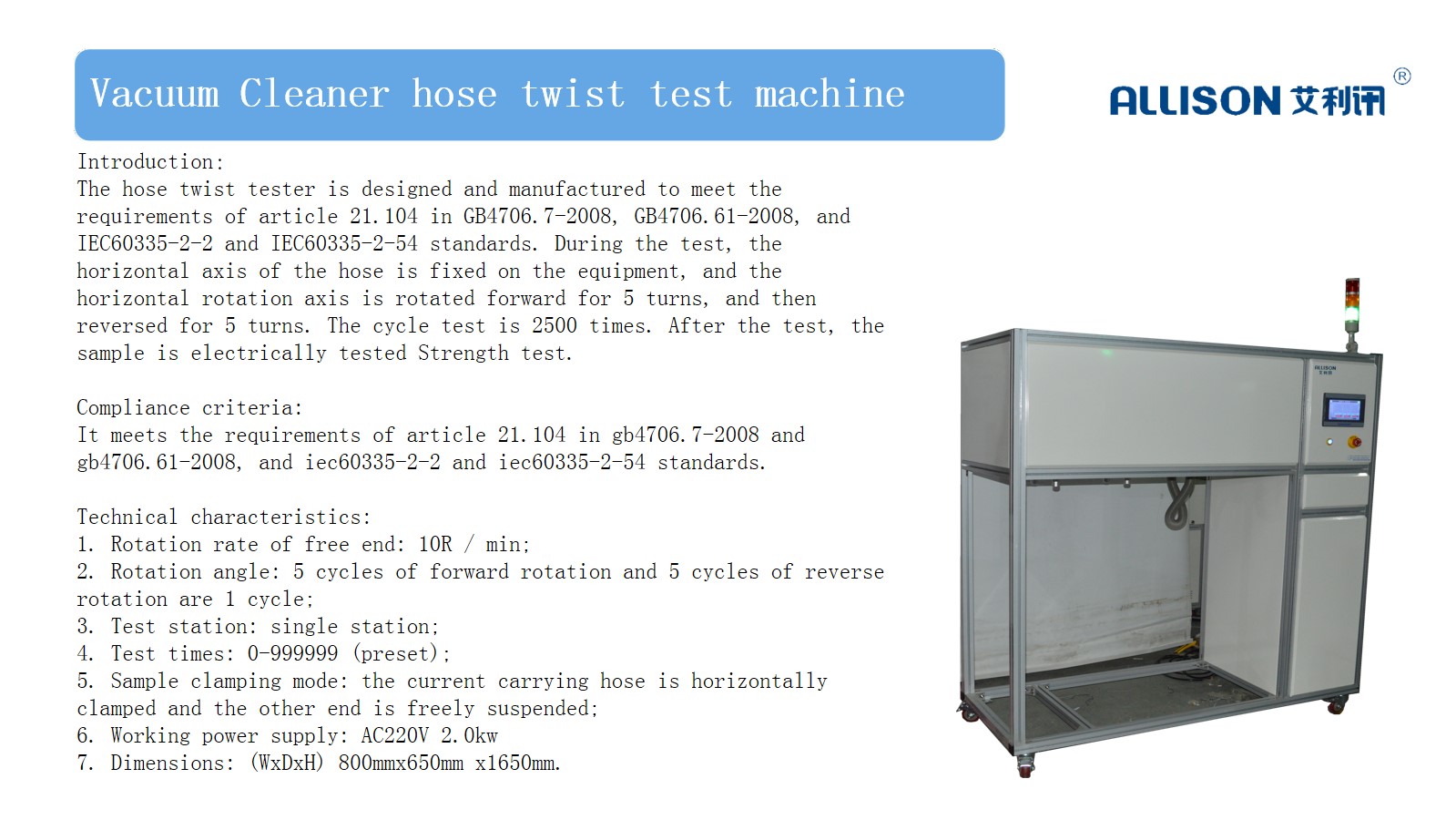

Vacuum cleaner hose twist resistance test equipment IEC60312 GB4706.7-2014 GB_T20291.1-2014

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: The vacuum cleaner hose twist resistance testing machine is designed and manufactured to fully meet the requirements of Clause 21.104 of the GB4706.7-2008 and GB4706.61-2008 standards and the requirements of the IEC60335-2-2 and IEC60335-2-54 standards. During the test, fix the hose on the horizontal axis of the equipment, rotate the horizontal rotation axis forward for 5 revolutions, and then reverse for 5 revolutions. The cycle test is 2500 times. After the test is completed, the electrical strength test is performed on the sample. Meet the GB4706.7-2008, GB4706.61-2008 standard clause 21.104 and IEC60335-2-2, IEC60335-2-54 standard requirements.

Main technical parameters

1. Rotation rate of free end: 10r/min;




2. Rotation angle: 5 cycles of forward rotation and 5 cycles of reverse rotation are 1 cycle;




3. Test station: 3 stations;




4. Test times: 0~9999999 times (preset);




5. Sample clamping method: the current-carrying hose is clamped horizontally, and the other end is free to hang;




6. Dimensions: 800mmx650mmx1650mm.




7. Equipment power supply: AC220V /50HZ 2KW
