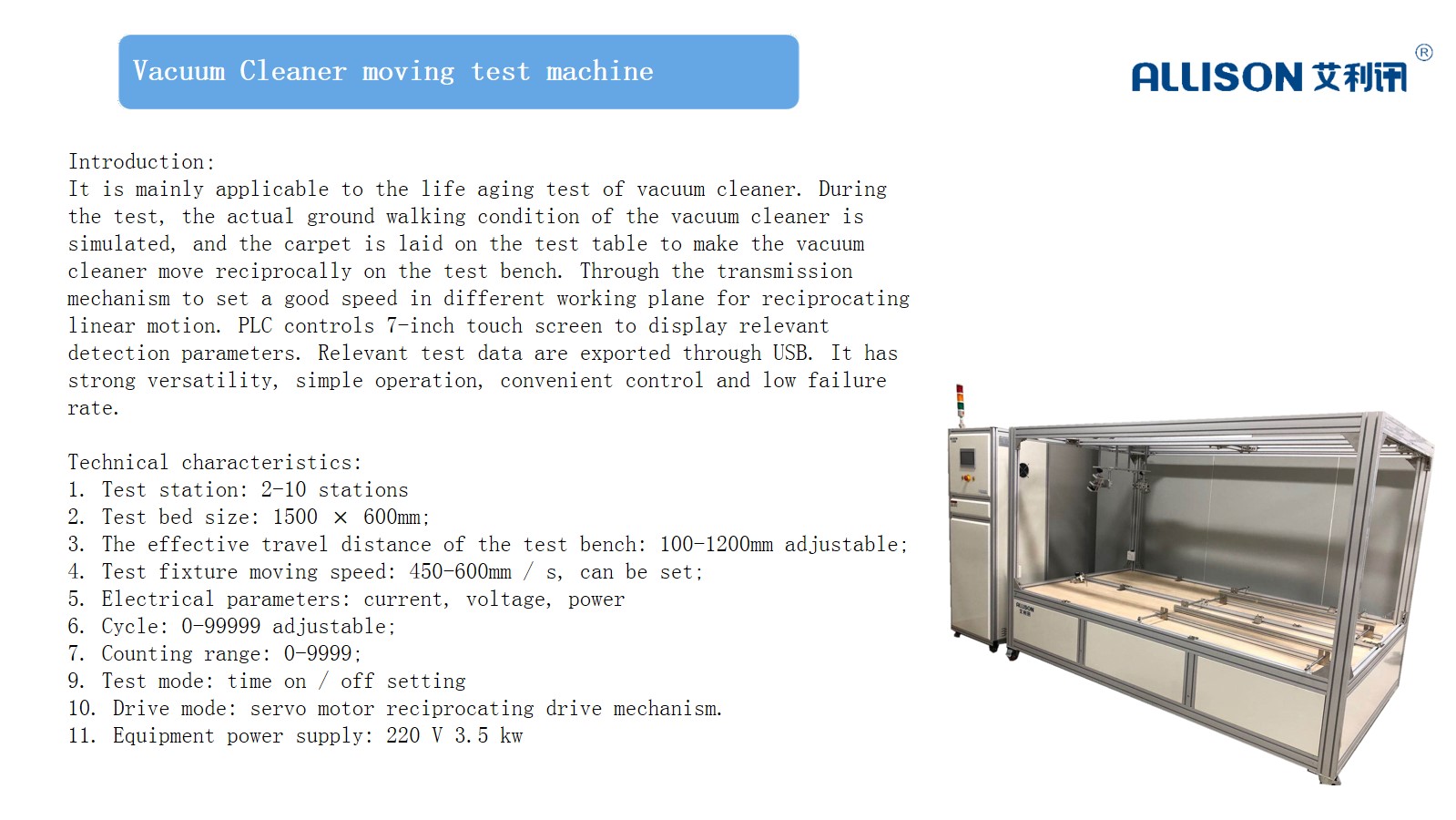

Vacuum cleaner mobile aging bed IEC60312 GB4706.7-2014 GB_T20291.1-2014

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: The test machine is mainly suitable for the life-time aging test of the vacuum cleaner. During the test, it simulates the actual ground walking situation of the vacuum cleaner, and lays carpets, hard floors, floor tiles and other materials on the test table. Through PLC control and transmission mechanism, the vacuum cleaner is relatively reciprocating on the test bench. Reciprocating linear walking motion on different worktables at a set speed. The testing machine is controlled by PLC/7-inch touch screen to display relevant testing parameters. The relevant detection data is exported via USB. It has strong versatility, simple operation, convenient control and low failure rate.

Main technical parameters



1. Test station: 2-10 stations


2. Test bench size: length 1500×width 600mm;


3. Effective travel of the test bench: 500-1200mm adjustable;


4. The moving speed of the test fixture: 100-1000mm/s can be set;


5. Test times: 0-99999 times adjustable;


6. Test cycle: 0-99999 times adjustable;


7. Counting range: 0-999999; hour/minute/second


9. Test mode: time on-off setting/current, voltage detection


10. Drive mode: Servo motor reciprocating drive mechanism.


11. Equipment power supply: AC220V /50HZ 3.5KW


12. Equipment size: 2500X1250X1680mm

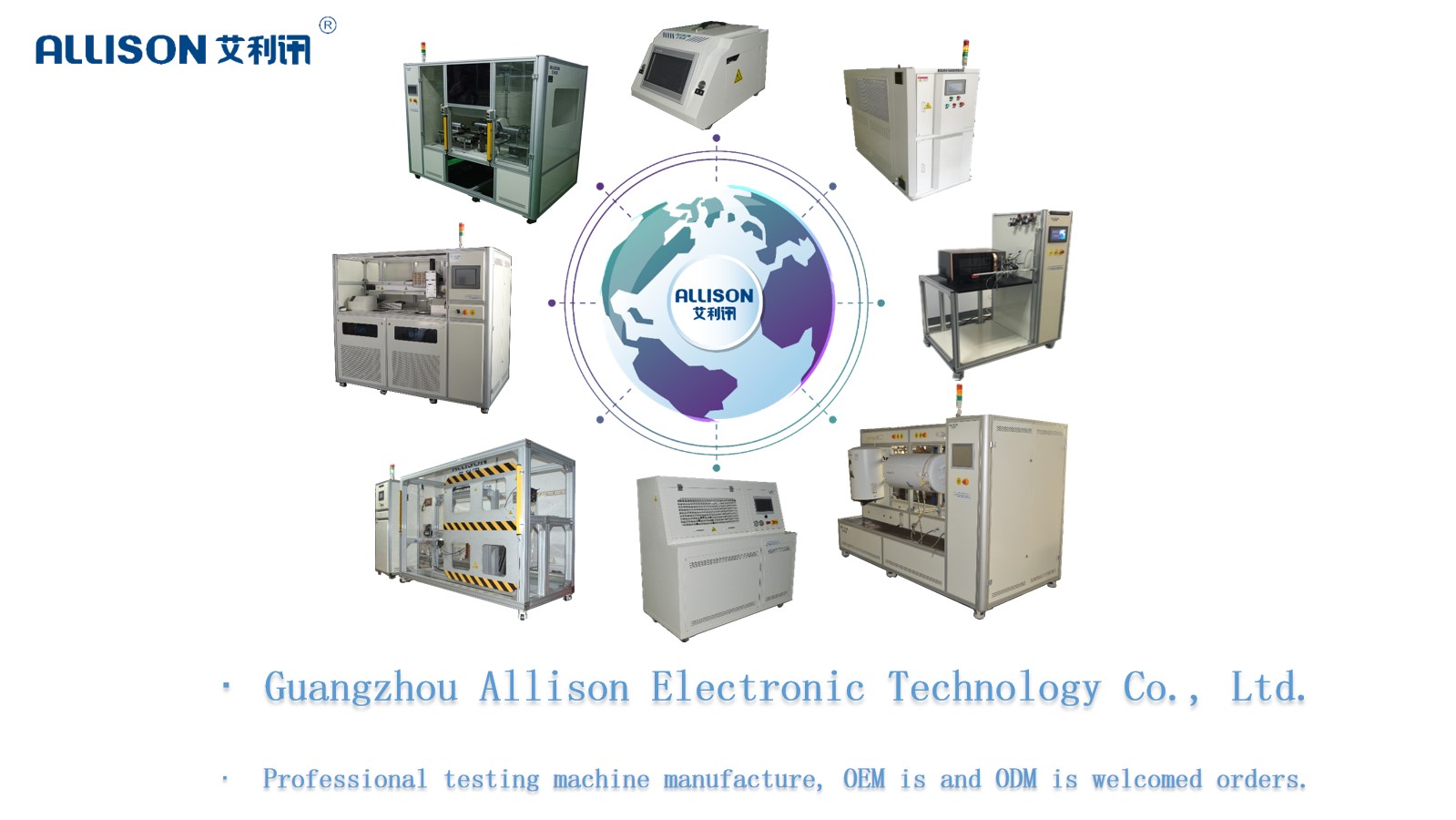

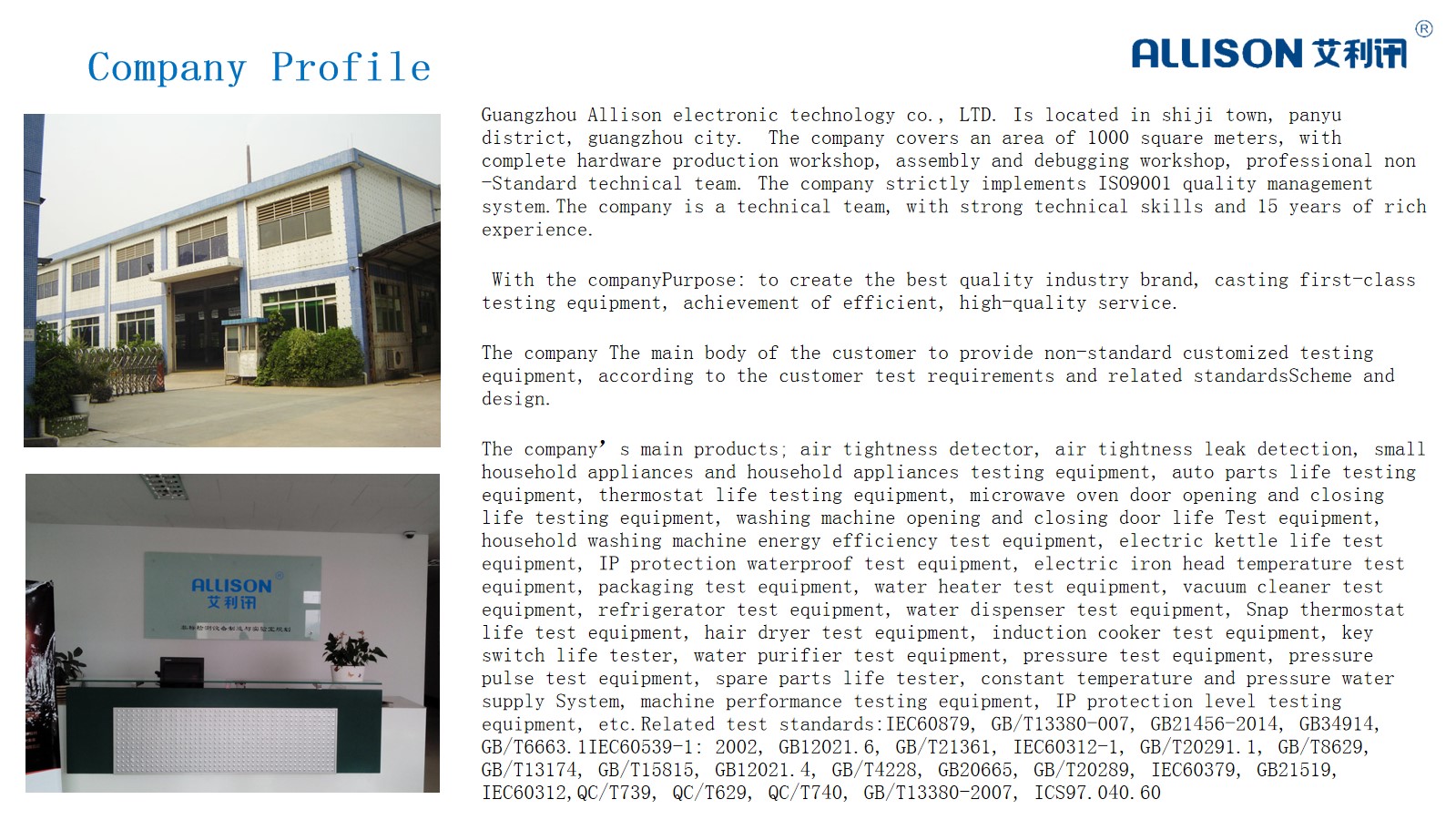

bf7478d4a90db8d60a598aa9d2f4c990.jpg3db6438ecb5057535caa1a7f0f5538ec.jpg907ab04c67942081460fb1f212fd3558.jpgf79258acd49a974b2b9416dd04faef28.jpg60d2522d1ecca63aedde1fbc14ac8955.jpg
